Vehicle Lift

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

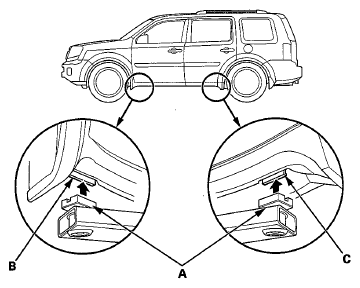

  1. Position the lift blocks (A), under the vehicle's front support points (B) and rear support points (C).
    Fig 1: Identifying Vehicle Support Points
    G05960658Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Raise the lift a few inches, and rock the vehicle gently to be sure it is firmly supported.
  3. Raise the lift to its full height, and inspect the vehicle support points for solid contact with the lift blocks.
