Cruise Control
>>
Circuit Diagram
>>
Without HandsFreeLink
Without HandsFreeLink

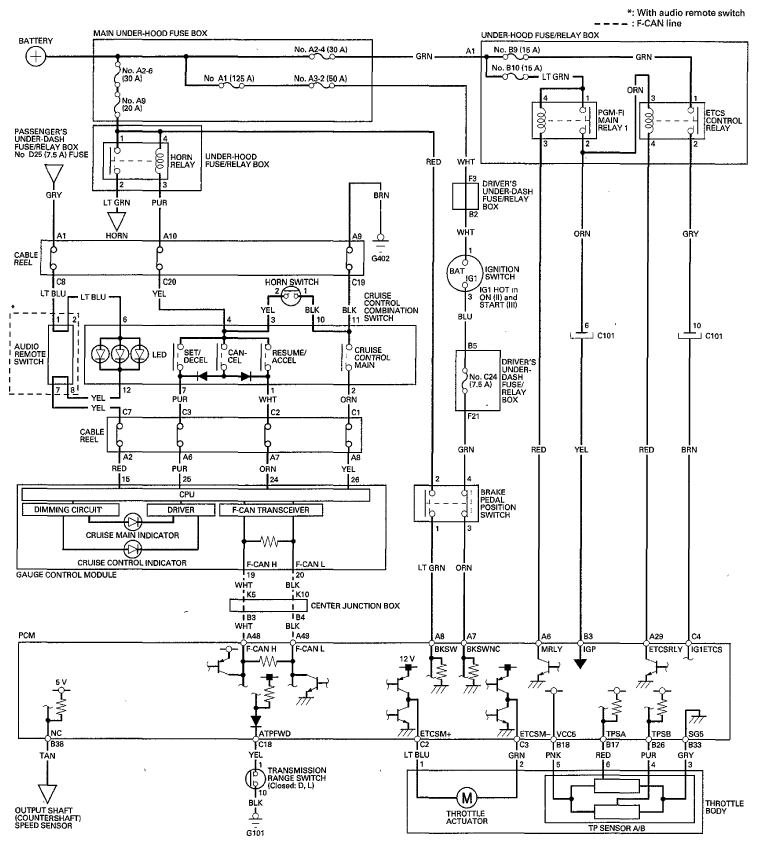

Fig 1: Cruise Control System Circuit Diagram (Without HandsFreeLink) (2011 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

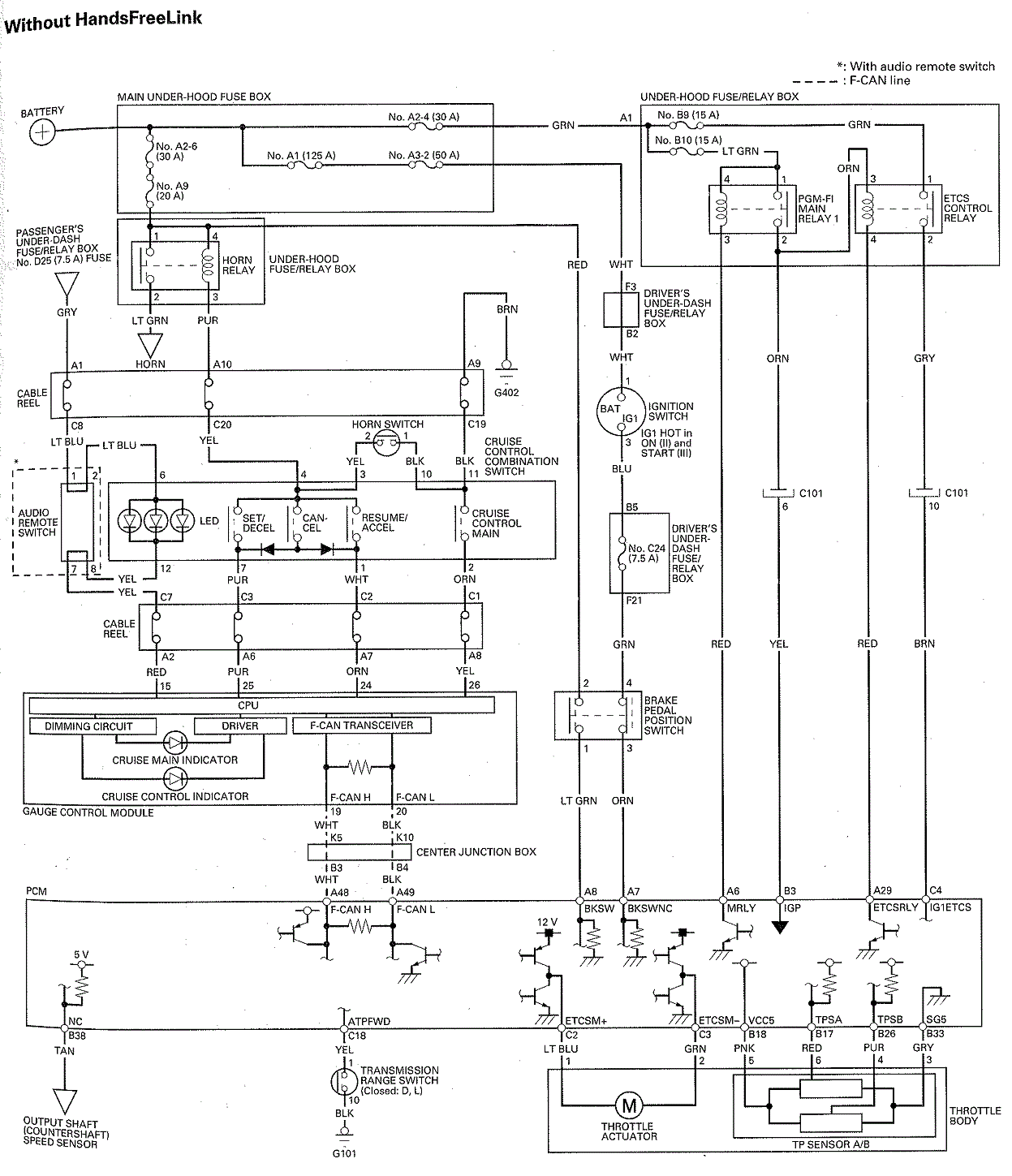

Fig 2: Cruise Control System Circuit Diagram (Without HandsFreeLink) (2012 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
