Door Lock Actuator Test: Test

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Front Door

Front Door Panel - Remove

Front Door Lock Actuator - Test

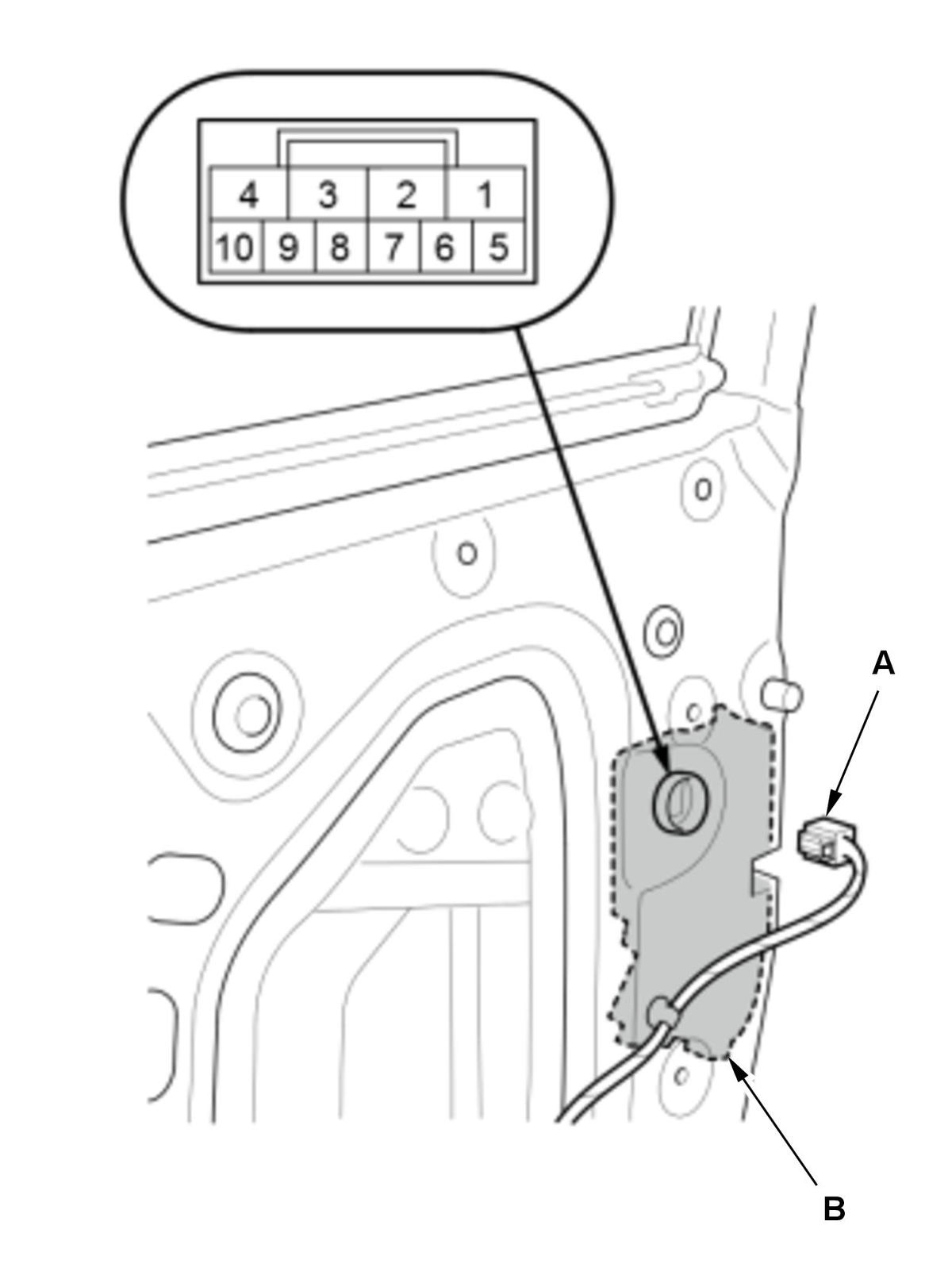

Driver's door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

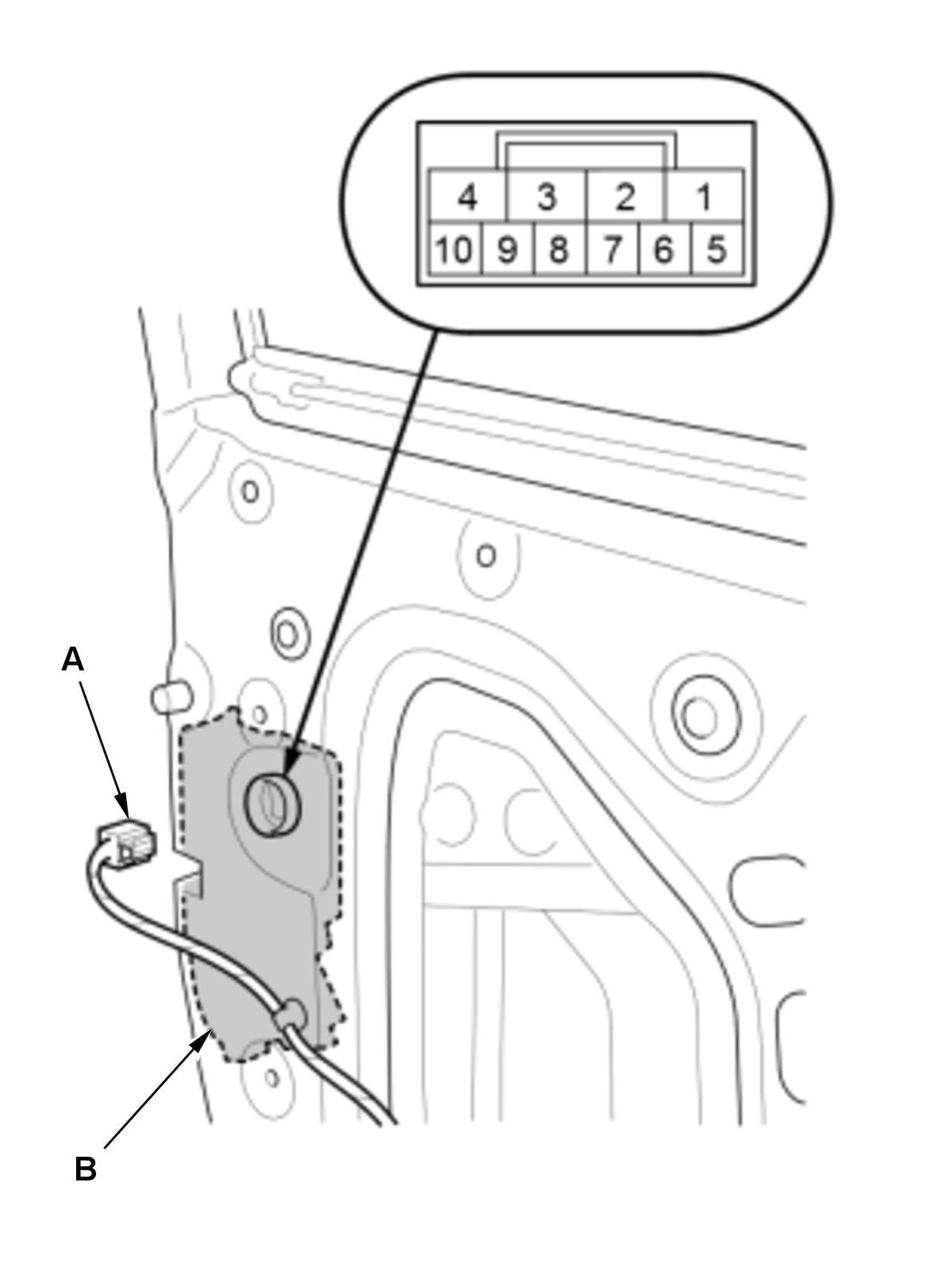

Front passenger's door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

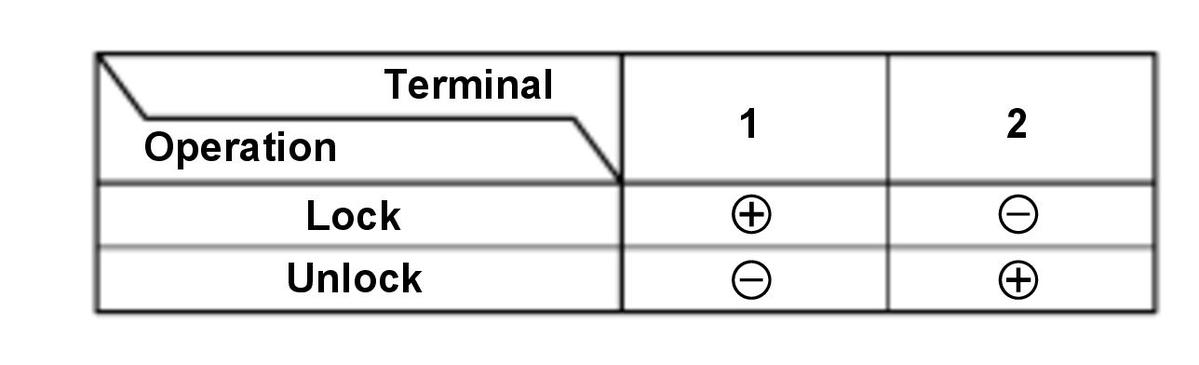

Driver's and front passenger's door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the connector (A).

2. Check the actuator operation by connecting power and ground according to the table in illustration.

NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.

3. If the actuator does not operate as specified, the front door lock actuator is faulty; replace the front door latch (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Sliding Door
Sliding Door Panel - Remove

Sliding Door Lock Actuator - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

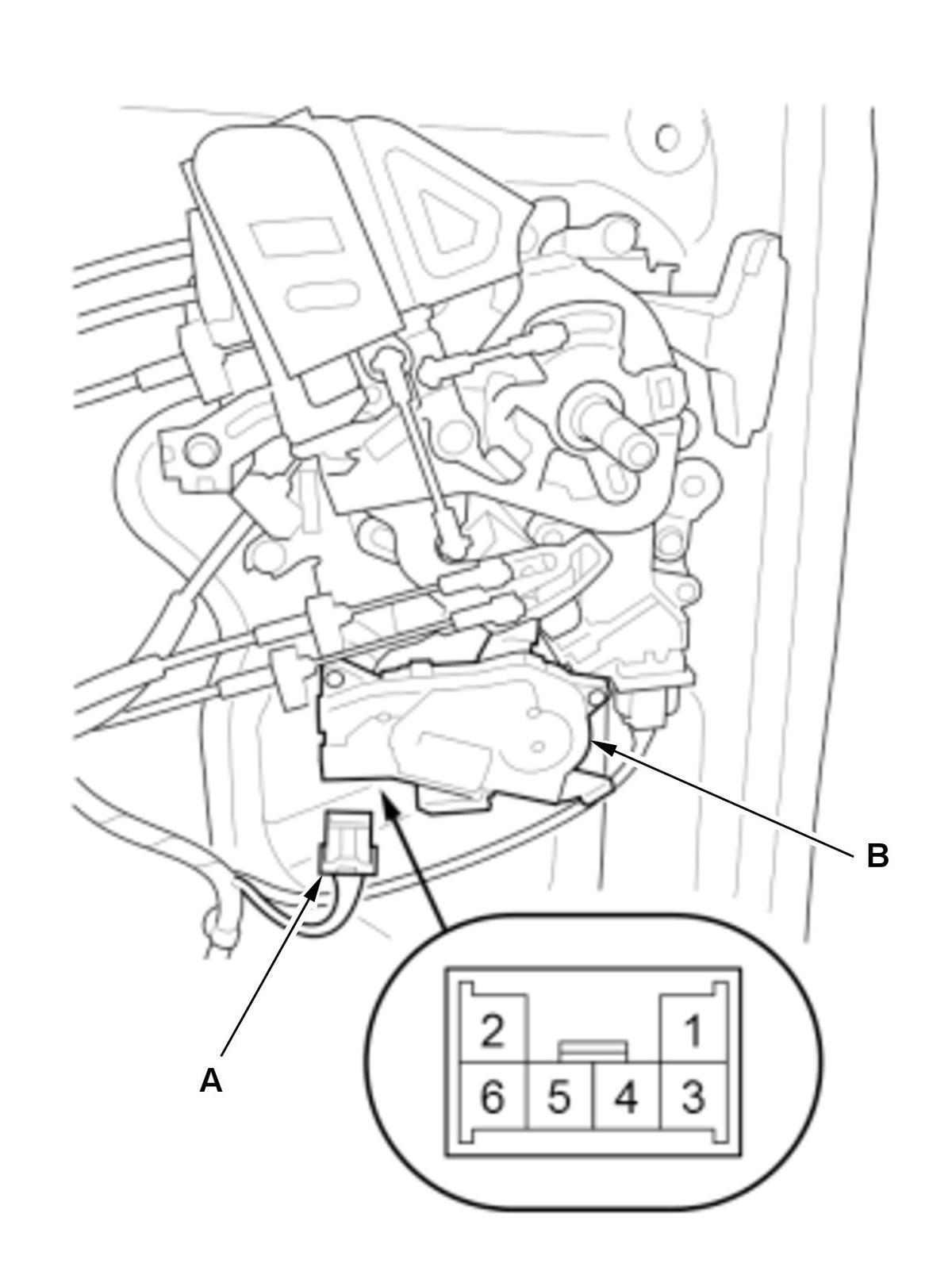

Left and right sliding door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the connector (A).

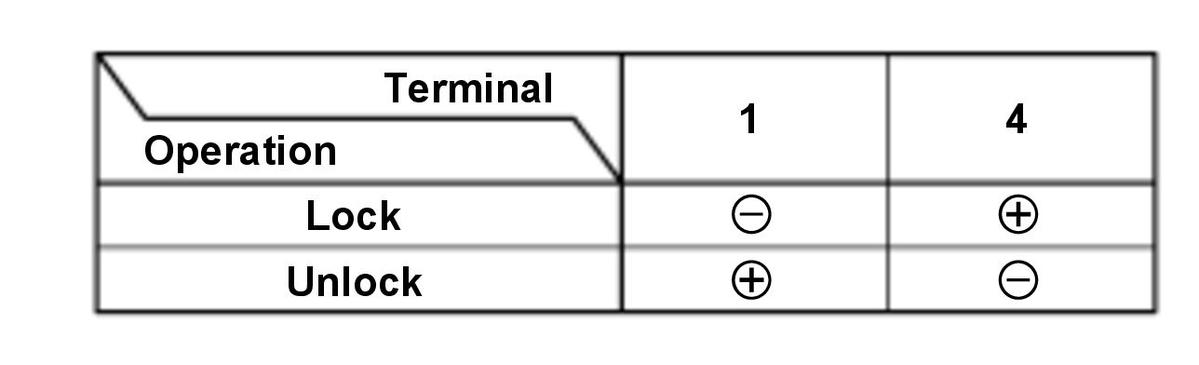

2. Check the actuator operation by connecting power and ground according to the table.

NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.

3. If the actuator does not operate as specified, replace the sliding door lock actuator (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
