Power Tailgate Outside Beeper Replacement

  1. Remove the rear bumper (see FRONT FOG LIGHT TRIM REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the power tailgate beeper (B), then remove the beeper.

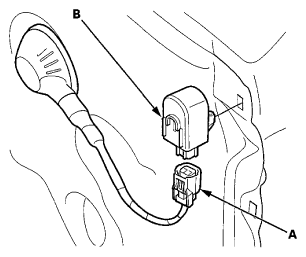

    Fig 1: Identifying 2P Connector And Power Tailgate Beeper
    G06970412Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal.
