Odyssey EX
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Tailgate
>>
Circuit Diagram
Circuit Diagram

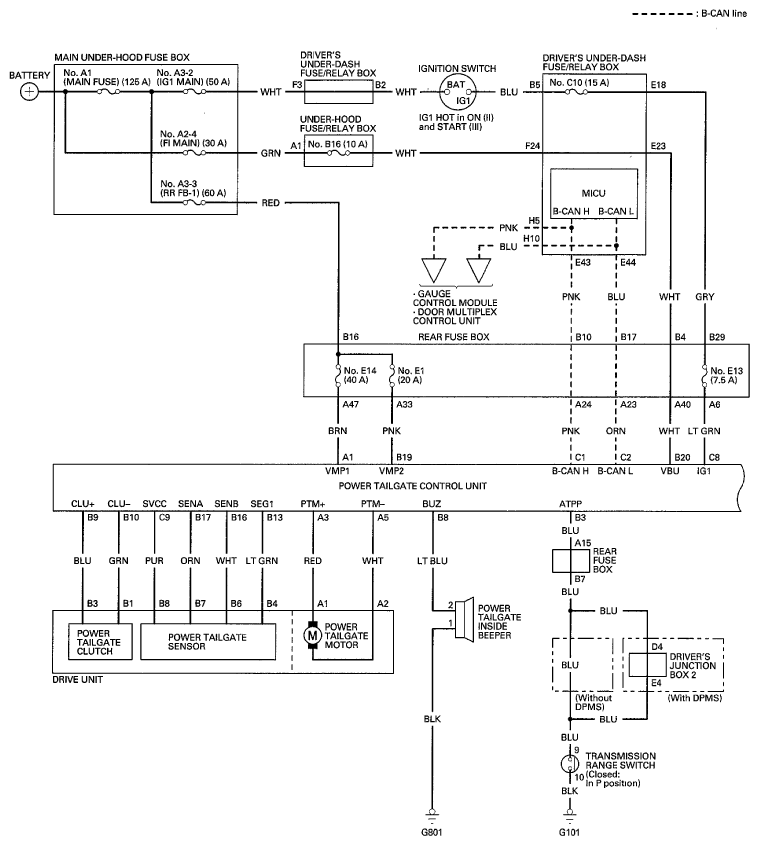

Fig 1: Power Tailgate Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

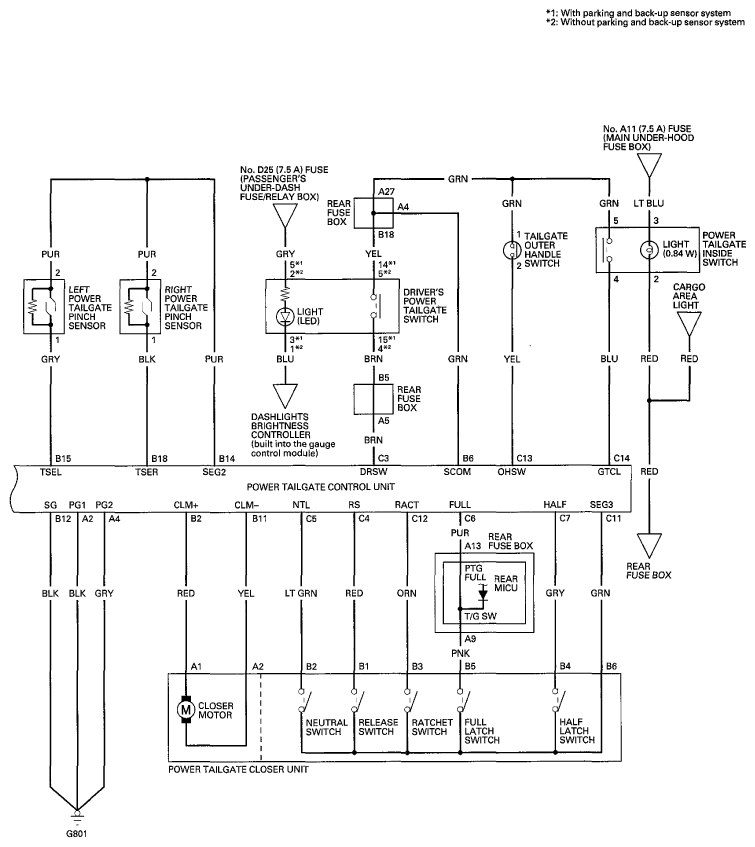

Fig 2: Power Tailgate Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
