Component Location Index

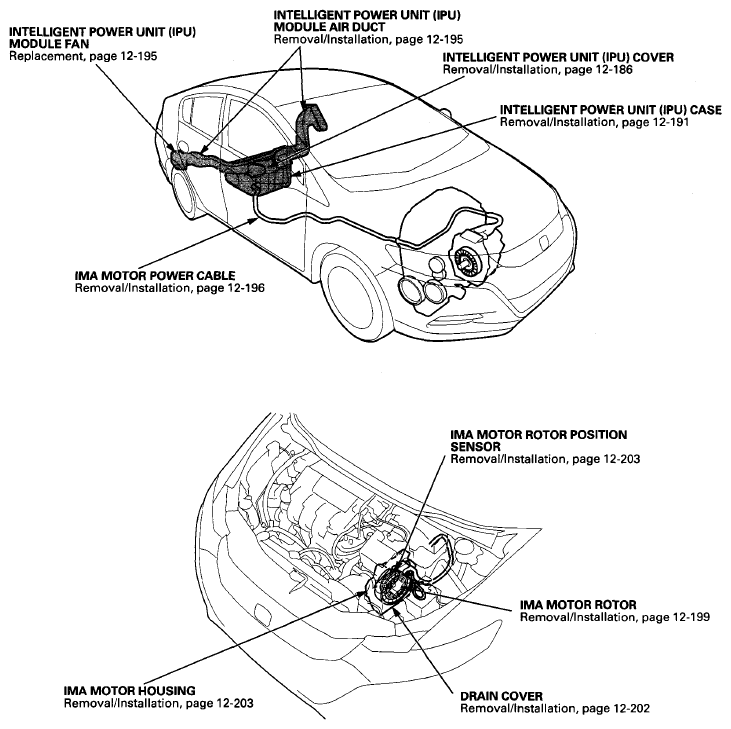

Fig 1: IMA System Component Location (1 Of 3)

G08092705

Courtesy of AMERICAN HONDA MOTOR CO., INC.

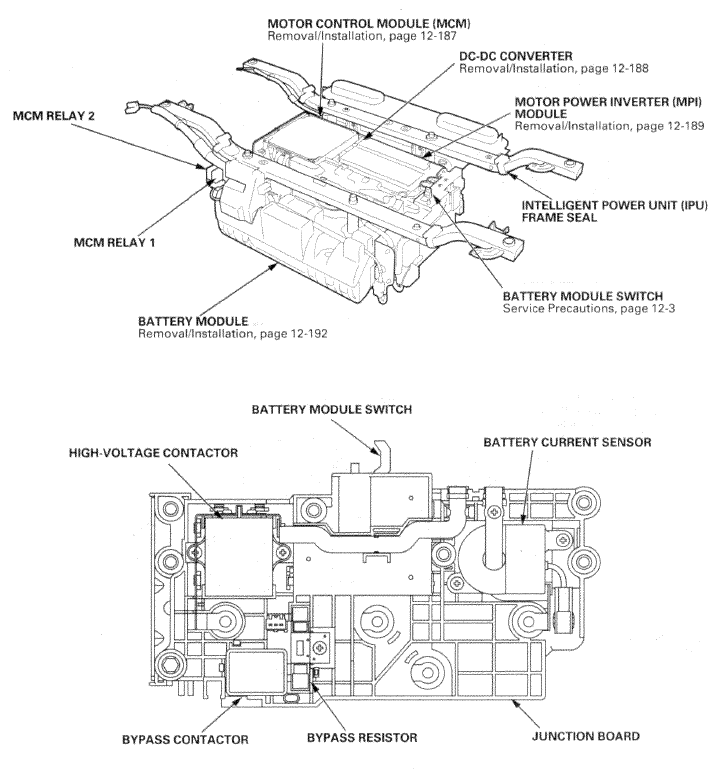

Fig 2: IMA System Component Location (2 Of 3)

G08092706

Courtesy of AMERICAN HONDA MOTOR CO., INC.

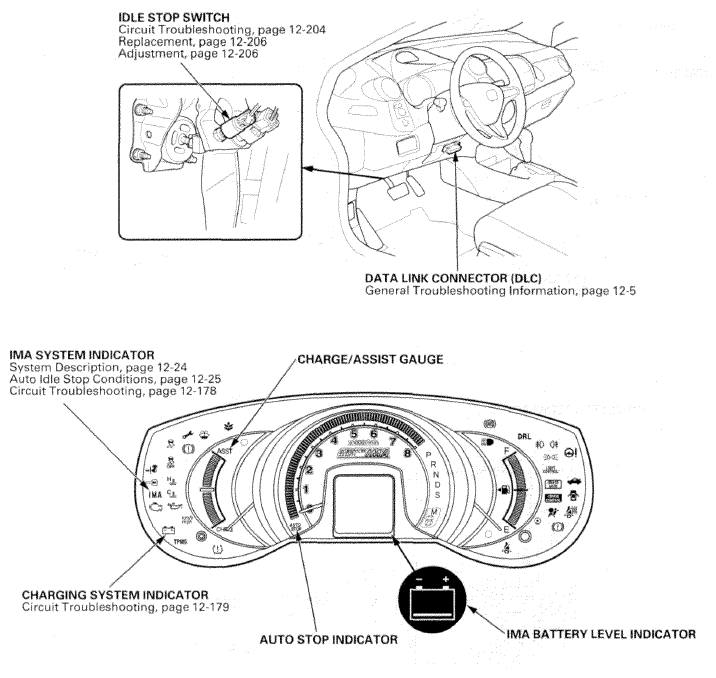

Fig 3: IMA System Component Location (3 Of 3)

G08092707

Courtesy of AMERICAN HONDA MOTOR CO., INC.
