Symptom Troubleshooting Using Malfunctioning Circuit Functions

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunction criteria to the line(s) that should be checked in the table:

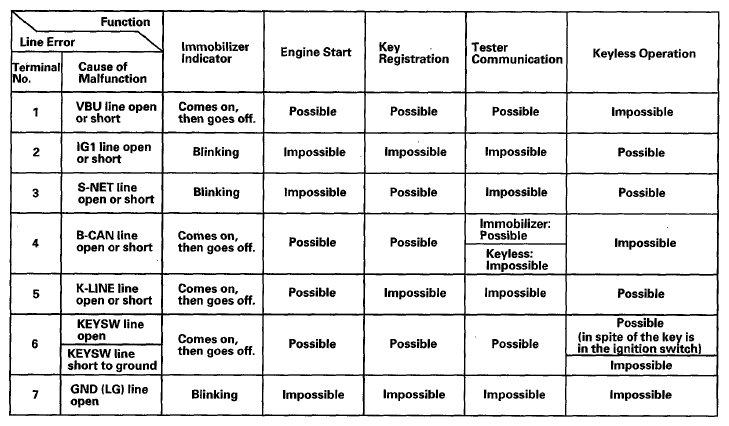

Fig 1: Identifying Troubleshooting Reference Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
