EVAP Canister Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a lift.

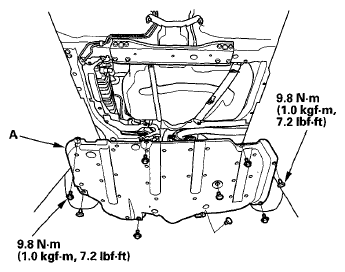

Except LX (A/T model): Remove the fuel tank cover (A)

Fig 1: Fuel Tank Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

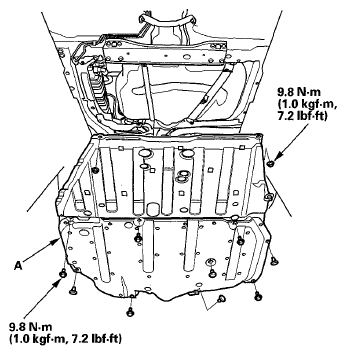

LX (A/T model): Remove the floor under cover assembly (A).

Fig 2: Floor Under Cover Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

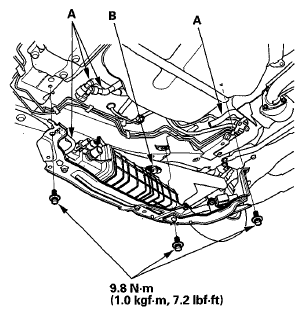

Remove the hoses (A), and disconnect the fuel sub-harness 6P connector (B).

Fig 3: Hoses & Fuel Sub-Harness 6P Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (A).

Fig 4: EVAP Canister Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister assembly (B).
Disconnect the FTP sensor connector (C), the hose (D), and the clips (E).
Disconnect the hose (A), remove the retainer (B) and remove the FTP sensor (C).
NOTE: When installing the FTP sensor, use a new O-ring (D).

Fig 5: Identifying Hose, Retainer, FTP Sensor & O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
