Section 34 (Fan Controls)
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

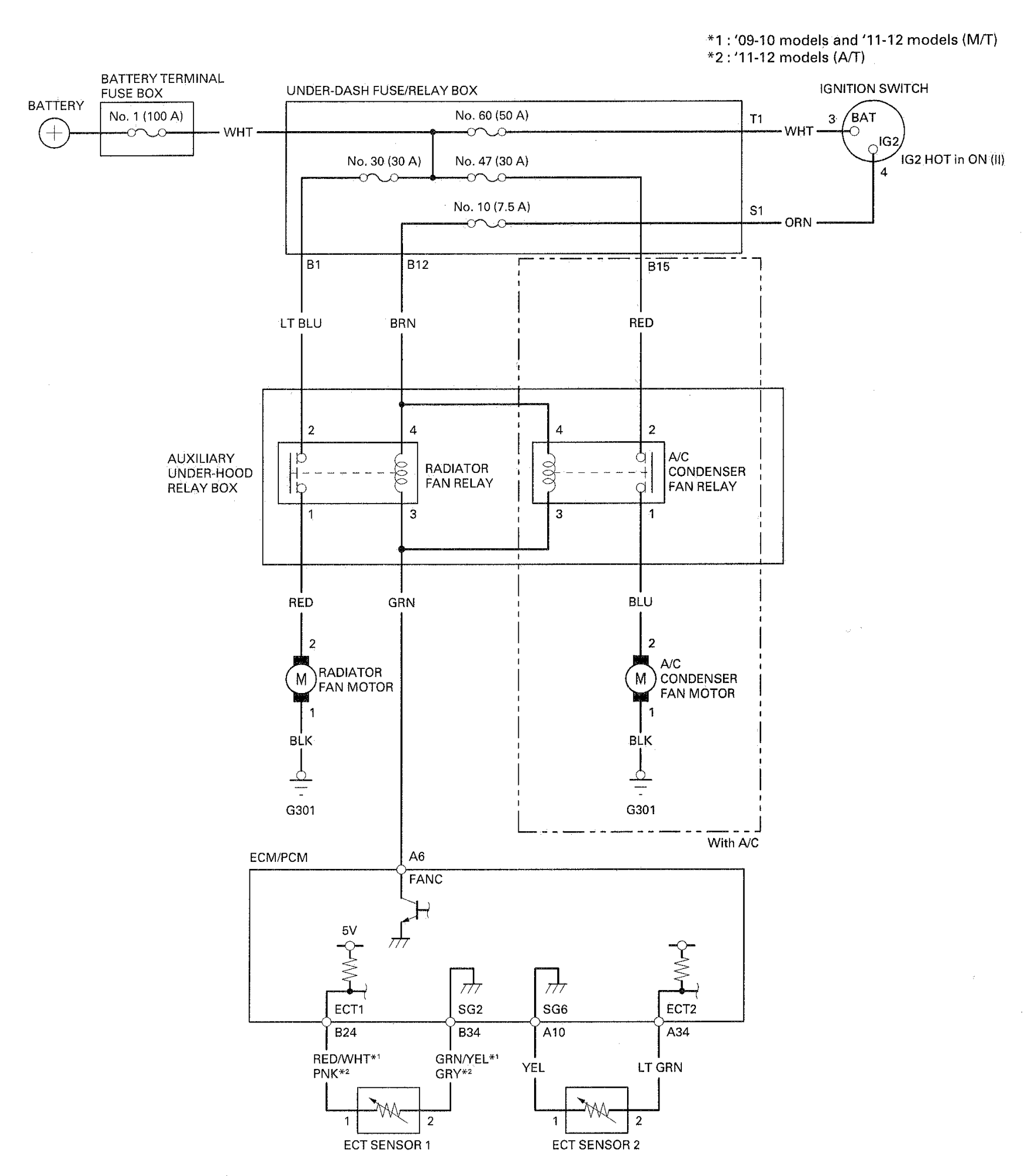

Fig 1: Identifying Fan Controls - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
