Power Door Lock Switch Test: Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Driver's Door Switch Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas
  2. Driver's Door Lock Switch - Test
    GHH83145GHH83146Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH83145GHH83146Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

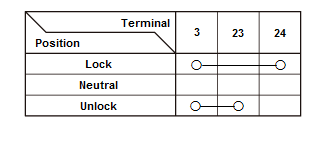

    		 1. Check for continuity between the terminals in each switch position according to table.

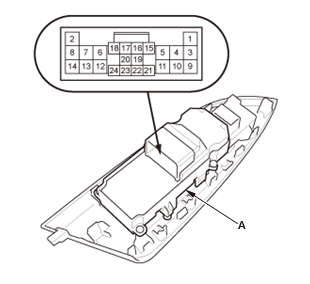

    2. If the continuity is not as specified, replace the power window master switch (A).
  3. All Removed Parts - Install
      1. Install the parts in the reverse order of removal.
