Park Pin Switch Test: Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Center Console - Remove
  2. Park Pin Switch - Test
    GHH83143GHH83144Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH83143GHH83144Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

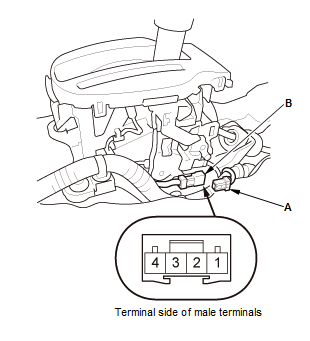

    		 1. Disconnect the connector (A).

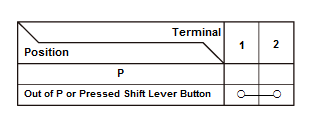

    2. Check for continuity between the terminals in each switch position according to the table.
    3. If the continuity is not as specified, check the shift cable adjustment . If the cable adjustment is OK, replace the park pin switch (B).
  3. All Removed Parts - Install
      1. Install the parts in the reverse order of removal.
