Keyless Access LF Antenna Function Test
NOTE: Before testing, check for DTCs. If any DTCs are indicated, troubleshoot the indicated DTCs first.
1. Turn the vehicle to the ON mode.
2. Connect the HDS to the data link connector (DLC) - Refer to: How To Troubleshoot The Fuel And Emissions Systems or How to Troubleshoot the CVT System (CVT) .
3. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS.
4. Select the SELF CHECK and if any malfunction is found, troubleshoot it first.
Doors and Rear Bumper

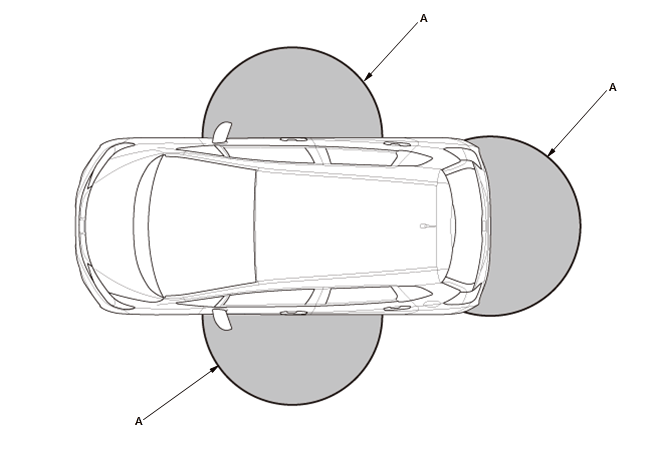

5. Select the FUNCTIONAL TESTS, and do the antenna driving test by checking the transmitting areas (A) between the LF antenna and the keyless remote.
| LF Antenna Location | HDS Indication (Functional Tests) |
|---|---|
| Driver's door LF antenna | Driver (Door) Antenna Driving |
| Front passenger's door LF antenna | Front Passenger (Door) Antenna Driving |
| Rear bumper LF antenna | Trunk/Tailgate/Rear Bumper Antenna Driving |
NOTE:
- Functional Tests cannot operate at the same time, check the LF antennas one at a time.
- Test the transmitting area at about 90 cm (35. 4 in) heights from the ground.
- The LED will blink when the keyless remote is within the shaded areas.
Interiors

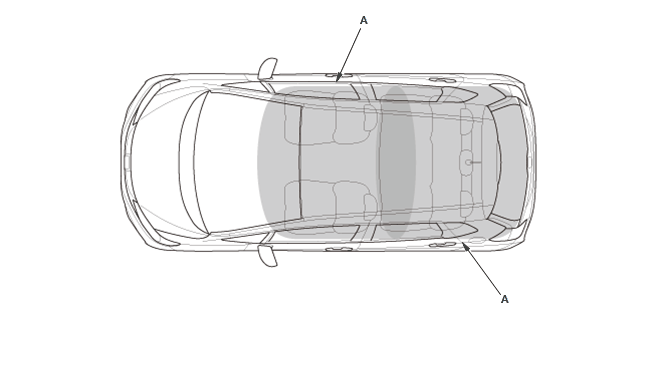

6. Select the FUNCTIONAL TESTS, and do the antenna driving test by checking the transmitting areas (A) between the LF antenna and the keyless remote (except on the dashboard, in the glove box, door pockets, console box, and other enclosed areas).
| LF Antenna Location | HDS Indication (Functional Tests) |
|---|---|
| Front interior LF antenna | Front Interior Antenna Driving |
| Rear interior LF antenna | Rear Interior Antenna Driving |
NOTE: Functional Tests cannot operate at the same time, check the LF antennas one at a time.
