Immobilizer-Keyless Control Unit Input Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

1. Turn the vehicle to the OFF (LOCK) mode

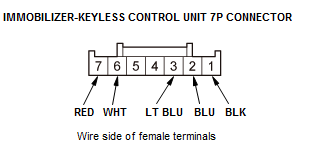

2. Disconnect the immobilizer-keyless control unit 7P connector.

GHH83136Courtesy of HONDA, U.S.A., INC.

3. Inspect the connector and socket terminals to be sure they are all making good contact:

4. With the connector still disconnected, do the following input tests:

Cavity Wire Terminal name Test condition Test: Desired result Possible cause if desired result is not obtained
2 BLU S-NET Jump the SCS line with the HDS, disconnect PCM connector A (51P) Measure the voltage to ground: There should be about 5 V.
  • An open or high resistance in the wire
  • A short to ground in the wire
Check for continuity between the terminal and PCM connector A (51P) terminal No. 21: There should be continuity.
  • Faulty under-dash fuse/relay box
  • An open or high resistance in the wire
Disconnect the 12 volt battery negative terminal Measure the resistance between the terminal and body ground: There should be more than 50 kΩ.
  • Faulty under-dash fuse/relay box
  • Poor ground (G401)
  • An open or high resistance in the ground wire

5. Reconnect the connector to the immobilizer-keyless control unit, do the following input tests:

NOTE:  After replacing the immobilizer-keyless control unit, and do the immobilizer key registration .

Cavity Wire Terminal name Test condition Test: Desired result Possible cause if desired result is not obtained
7 RED +B BACK UP Under all conditions Measure the voltage to ground: There should be battery voltage.
  • Blown No. B29 (10 A) fuse in the under-hood fuse/relay box
  • An open or high resistance in the wire
6 WHT IG1 FUEL PUMP Vehicle ON mode. Measure the voltage to ground: There should be battery voltage.
  • Blown No. C32 (15 A) fuse in the under-dash fuse/relay box
  • An open or high resistance in the wire
1 BLK GND In all power mode s Measure the voltage to ground: There should be less than 0. 2 V.
  • Poor ground (G401)
  • An open or high resistance in the ground wire
3 LT BLU K LINE Under all conditions Measure the voltage to ground: There should be pulse voltage (digital signal).
  • Faulty control unit on the K LINE
  • Short to ground in the K LINE wire
