Door Outer Handle Lock Switch Test: Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Door Panel - Remove
  2. Front Door Outer Handle Lock Switch - Test
    GHH83134GHH83135Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH83134GHH83135Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

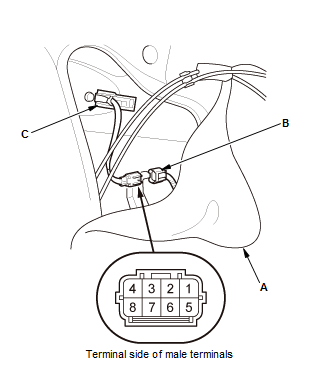

    		 1. Remove the front door plastic cover (A) as needed.
    2. Disconnect the connector (B).
    3. Check for continuity between the terminals in each switch position according to the table.
    4. If the continuity is not as specified, the front door outer handle lock switch is faulty; replace the front door outer handle (C).
  3. All Removed Parts - Install
      1. Install the parts in the reverse order of removal.
