Door Lock Knob Switch Test: Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Front Door

Front Door Panel - Remove

Front Door Lock Knob Switch - Test

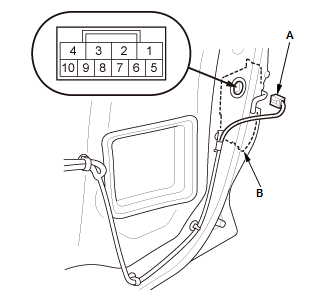

Driver's Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

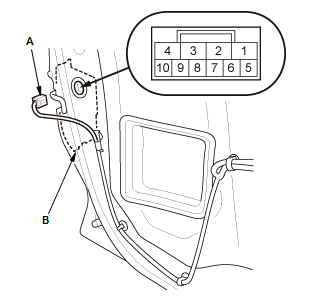

Front Passenger's Door (With Security)

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the connector (A).

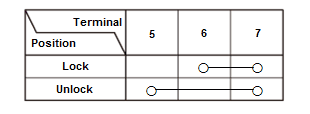

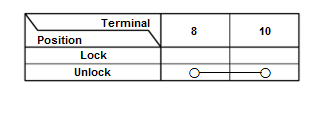

2. Check for continuity between the terminals in each switch position according to the table.
3. If the continuity is not as specified, the front door lock knob switch is faulty; replace the front door latch (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Rear Door (With Security)
Rear Door Panel - Remove

Rear Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

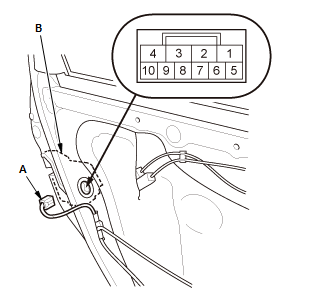

Left and Right Rear Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the connector (A).
2. Check for continuity between the terminals in each switch position according to the table.
3. If the continuity is not as specified, the rear door lock knob switch is faulty; replace the rear door latch (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
