Door Key Cylinder Switch Test: Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Door Panel - Remove
  2. Door Key Cylinder Switch - Test
    GHH83121GHH83122Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH83121GHH83122Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

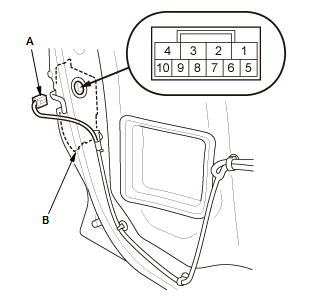

    		 1. Disconnect the connector (A).

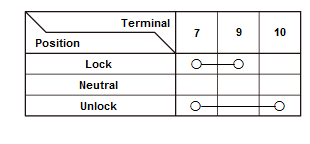

    2. Check for continuity between the terminals in each switch position according to the table.
    3. If the continuity is not as specified, the door key cylinder switch is faulty; replace the driver's door latch (B).
  3. All Removed Parts - Install
      1. Install the parts in the reverse order of removal.
