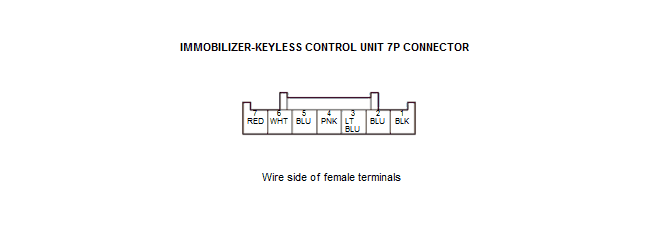

Immobilizer-Keyless Control Unit Connector for Inputs and Outputs
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | GND | ground for immobilizer-keyless control unit | Less than 0. 2 V at all times |
| 2 | S-NET | Communication line | - - - |
| 3 | K LINE | Communication line | - - - |
| 4 | B-CAN_H | Communication line | - - - |
| 5 | B-CAN_L | Communication line | - - - |
| 6 | IG1 FUEL PUMP | IG1 power source | With vehicle in ON mode: about battery voltage |
| 7 | +B BACK UP | Power source for immobilizer-keyless control unit | About battery voltage at all times |
