Symptom Troubleshooting Using Malfunctioning Circuit Functions

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

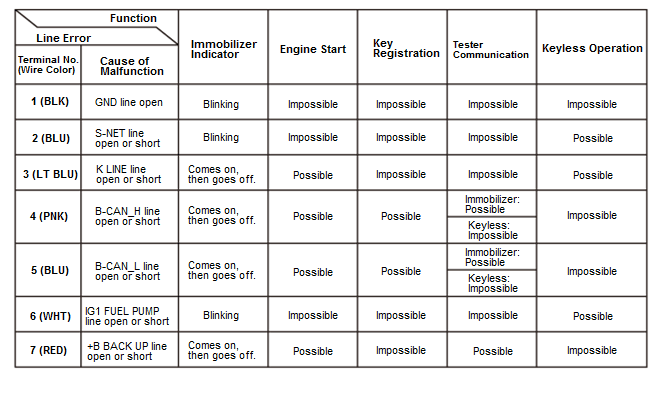

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunction criteria to the line (s) that should be checked in the table:

GHH83041Courtesy of HONDA, U.S.A., INC.
