Keyless Access System Component Location Index

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

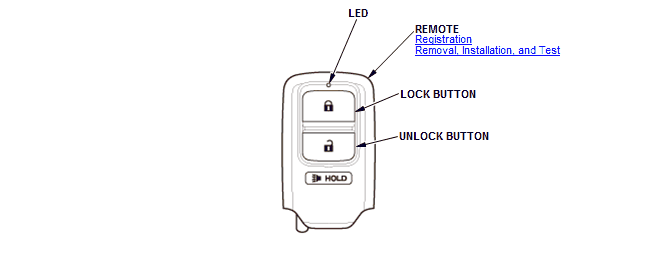

GHH83015Courtesy of HONDA, U.S.A., INC.

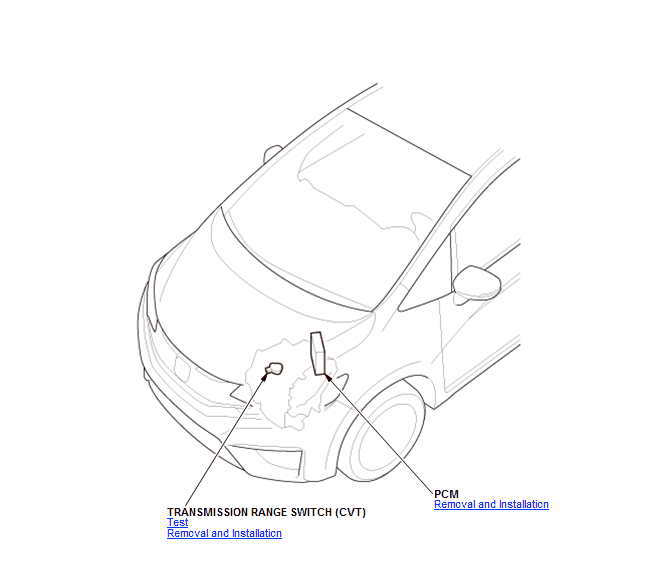

GHH83016Courtesy of HONDA, U.S.A., INC.

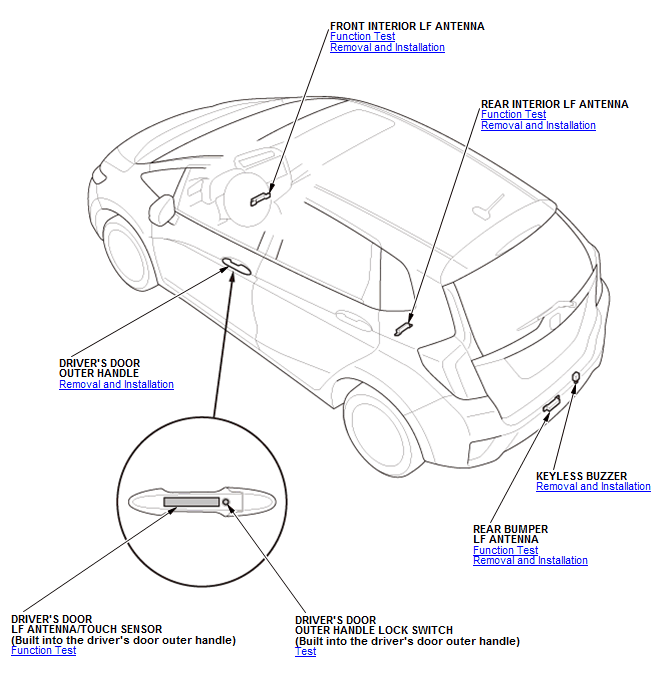

GHH83017Courtesy of HONDA, U.S.A., INC.

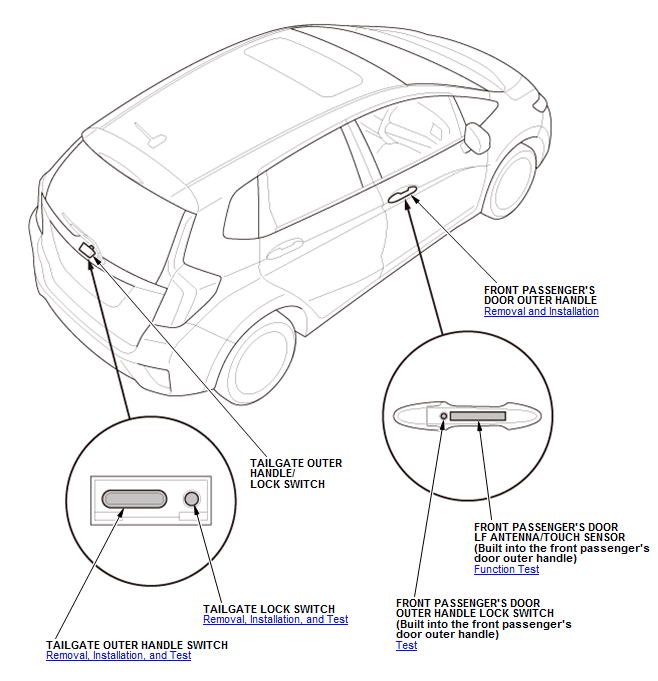

GHH83018Courtesy of HONDA, U.S.A., INC.

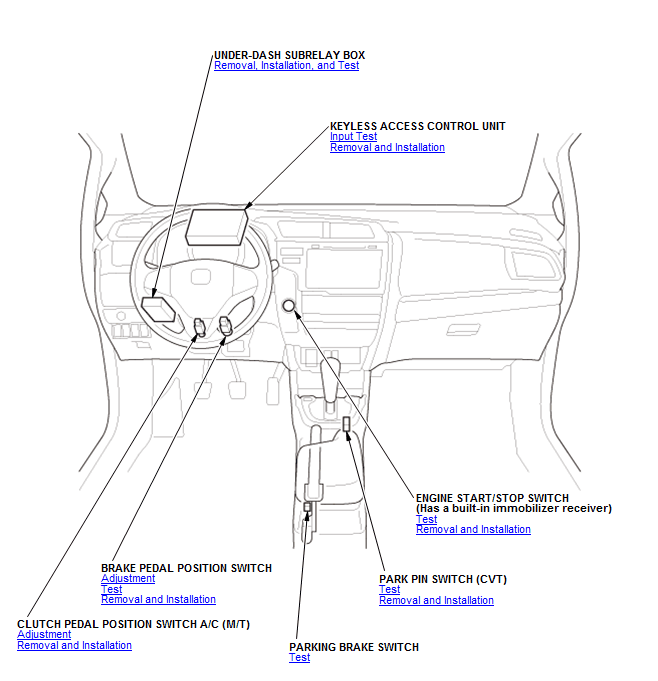

GHH83019Courtesy of HONDA, U.S.A., INC.

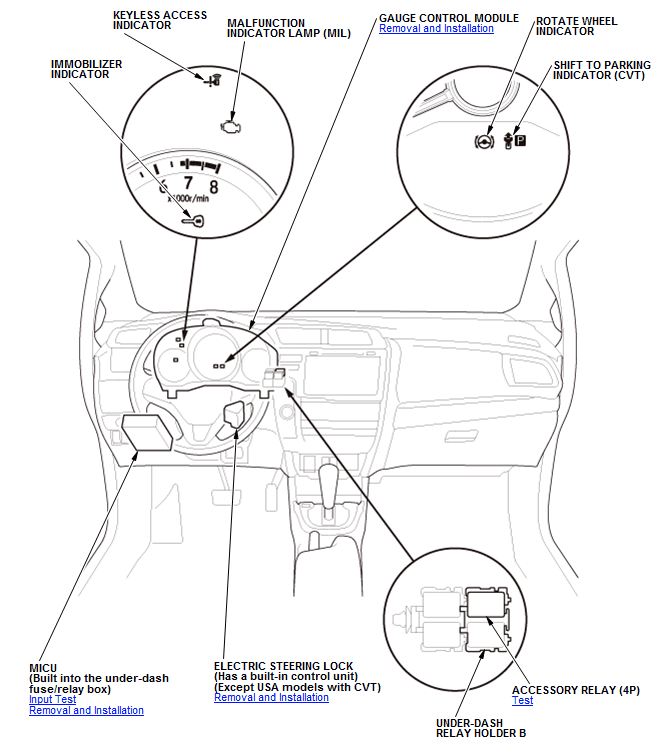

GHH83020Courtesy of HONDA, U.S.A., INC.
