Keyless/Power Door Locks/Security System Circuit Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

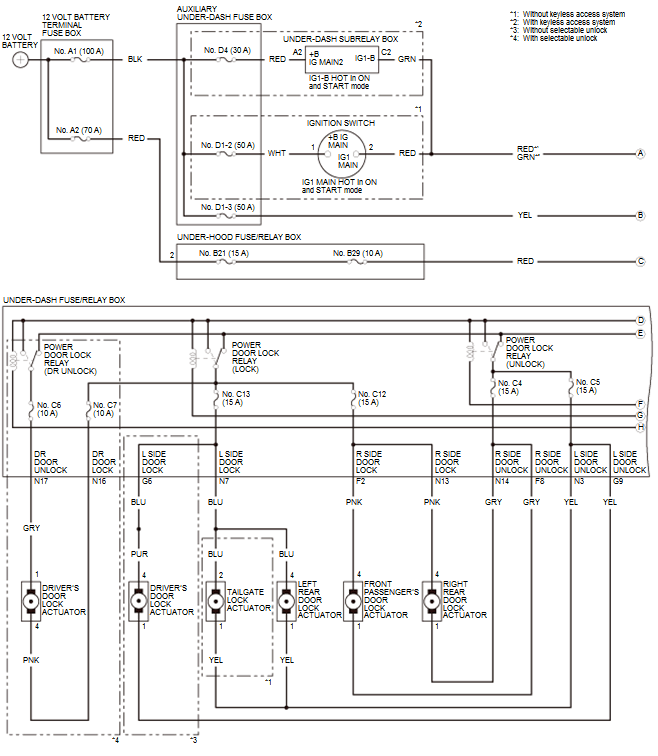

GHH83037Courtesy of HONDA, U.S.A., INC.

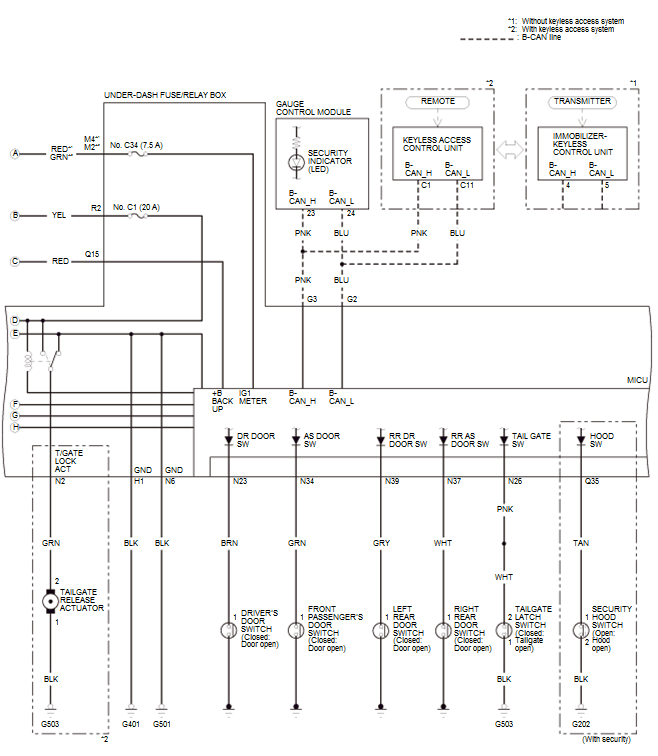

GHH83038Courtesy of HONDA, U.S.A., INC.

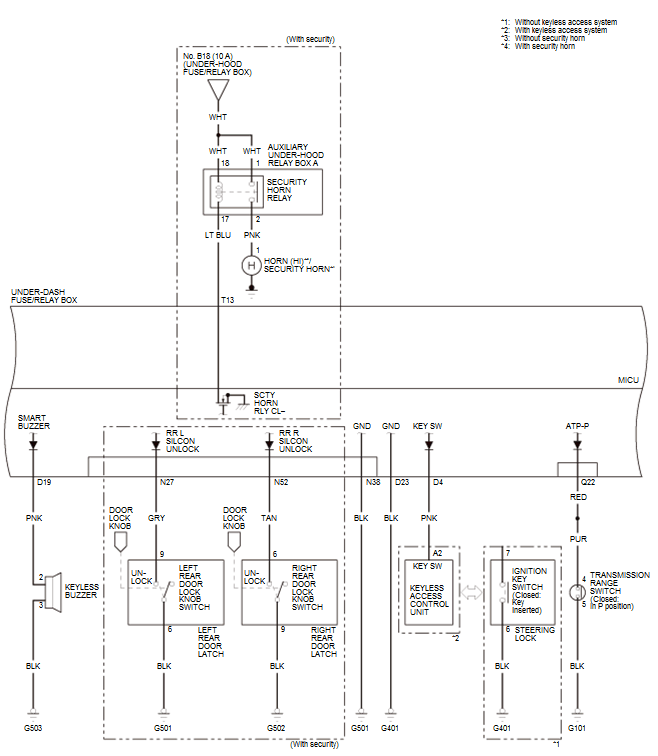

GHH83039Courtesy of HONDA, U.S.A., INC.

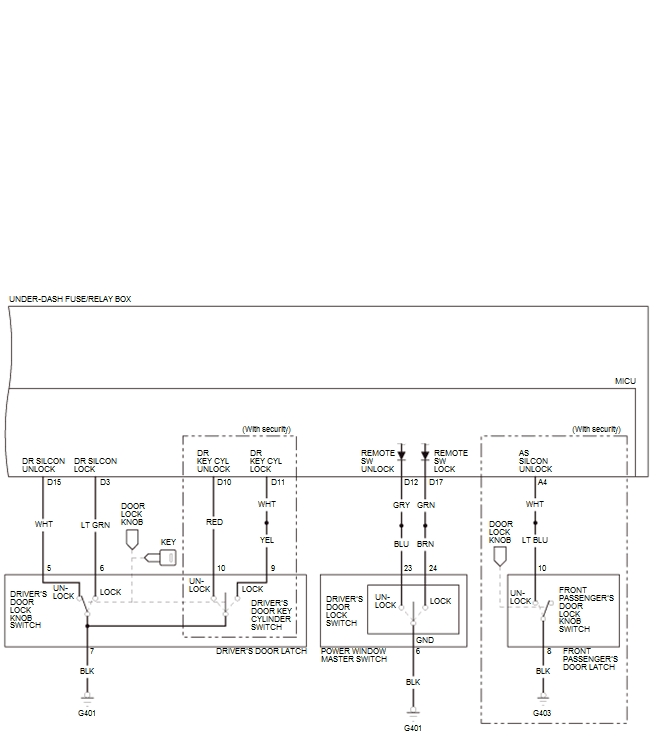

GHH83040Courtesy of HONDA, U.S.A., INC.
