Security Horn Removal, Installation, And Test: Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Security Horn - Test

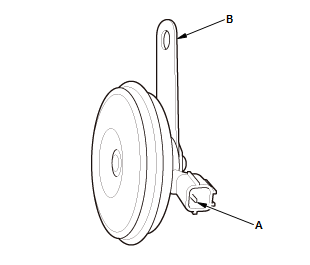

    GHH83203Courtesy of HONDA, U.S.A., INC.
    		 1. Test the horn by momentarily connecting 12 volt battery power to the terminal (A) and grounding the bracket (B). The horn should sound

    2. If it fails to sound, replace the security horn.
