Heater Control Panel Disassembly and Reassembly
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the heater control panel (see HEATER CONTROL PANEL REMOVAL/INSTALLATION ).

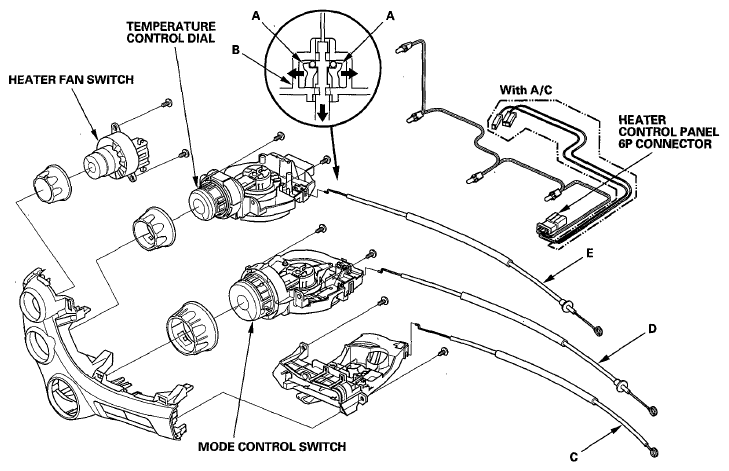

- Spread the cable stops (A) in the cable holders (B) with snap ring pliers, then pull out the recirculation control cable (C), the mode control cable (D), and the air mix control cable (E).
- Hook the tip of the new control cable to the appropriate control dial or slider, then push the cable housing into the cable holder until it locks into place.
- After assembly, make sure that the heater and fan controls operate normally.
