Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ) and the glove box (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
Remove the recirculation control cable from the blower unit (see RECIRCULATION CONTROL CABLE ADJUSTMENT ).
Remove the bolts and the glove box frame (A).

Fig 1: Identifying Glove Box Frame With Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cut the plastic cross brace (A) in the glove box opening with diagonal cutters in the area (B). Remove and discard the plastic cross brace.

Fig 2: Identifying Plastic Cross Brace
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (A) from the blower motor (B).

Fig 3: Identifying Blower Motor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the self-tapping screws and the harness clip (A), then remove the passenger's heater duct (B).

Fig 4: Identifying Harness Clip & Passenger's Heater Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.

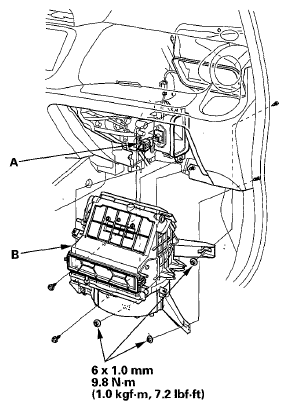

Remove the connector clip (A), the self-tapping screws and the mounting nuts, then pull the blower unit (B) out.

Fig 5: Connector Clip & Blower Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal. Make sure that there is no air leakage.
