Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the lower crash pad.
(Refer to the "CRASH PAD ")

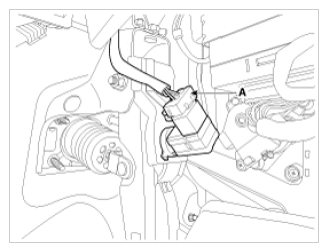

Disconnect the stop lamp switch connector (A).

Fig 1: Identifying Stop Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

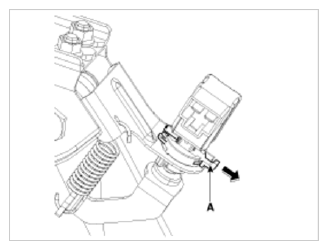

Pull the locking plate (A) as indicated by the arrow.

Fig 2: Pulling Locking Plate
Courtesy of HYUNDAI MOTOR AMERICA

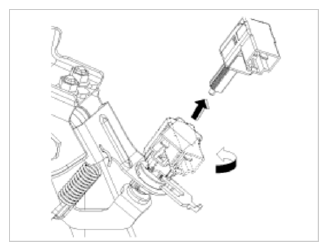

Turn stop lamp switch 45° counterclockwise and remove it.

Fig 3: Turning Stop Lamp Switch
Courtesy of HYUNDAI MOTOR AMERICA
