Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the brake fluid level switch connector, and remove the reservoir cap.
Remove the brake fluid from the master cylinder reservoir with a syringe.
CAUTION: Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
Remove the wheel & tire.
Disconnect the brake tube by loosening the tube flare nut (B).
Tightening torque:

12.7 ~ 16.7 N.m (1.3 ~ 1.7 kgf.m, 9.4 ~ 12.3 lb-ft)

Front

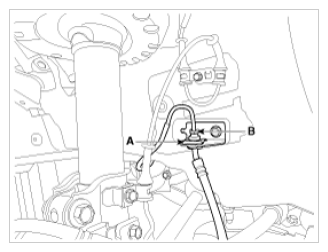

Fig 1: Identifying Brake Tube And Flare Nut (Front)
Courtesy of HYUNDAI MOTOR AMERICA

Rear

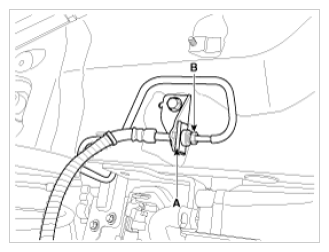

Fig 2: Identifying Brake Tube And Flare Nut (Rear)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the brake hose clip (A).
Disconnect the brake hose from the brake caliper by loosening the bolt (C).
Tightening torque:

24.5 ~ 29.4 N.m (2.5 ~ 3.0 kgf.m, 18.1 ~ 21.7 lb-ft)

Front

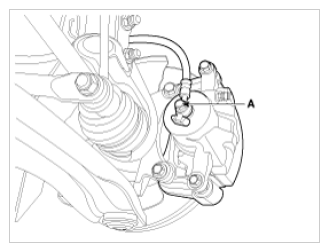

Fig 3: Identifying Brake Hose Clip And Bolts (Front)
Courtesy of HYUNDAI MOTOR AMERICA

Rear

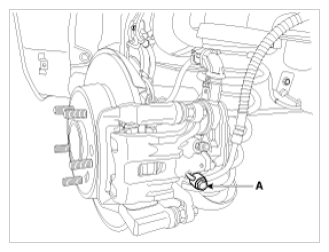

Fig 4: Identifying Brake Hose Clip And Bolts (Rear)
Courtesy of HYUNDAI MOTOR AMERICA
