Fan Motor Test
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

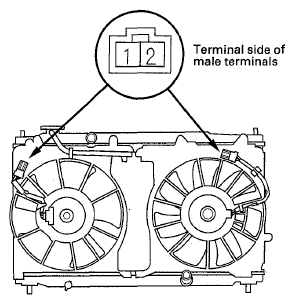

- Disconnect the 2P connectors from the radiator fan motor and condenser fan motor.
- Test the motor by connecting battery power to No. 2 terminal and ground to No. 1 terminal.
- If the motor fails to run, or does not run smoothly, replace it.
