Driver Position Memory System (DPMS) (4-CYL)
>>
Component Location Index
>>
Without Navigation
Without Navigation

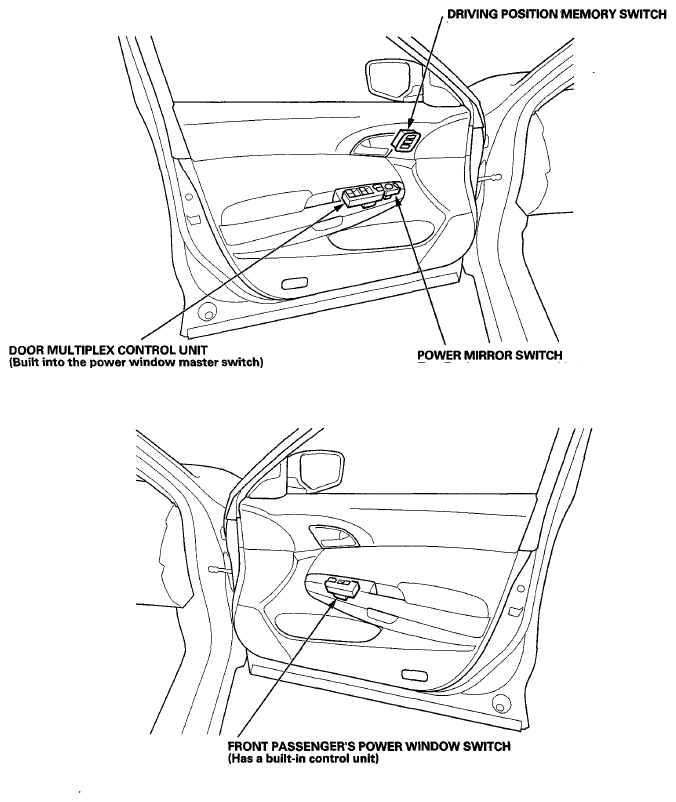

Fig 1: Identifying DPMS Components Location (Without Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

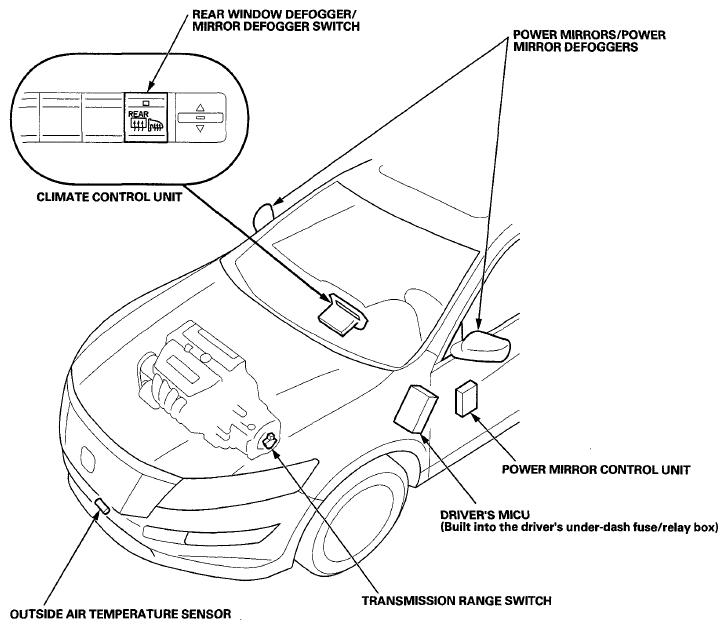

Fig 2: Identifying DPMS Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

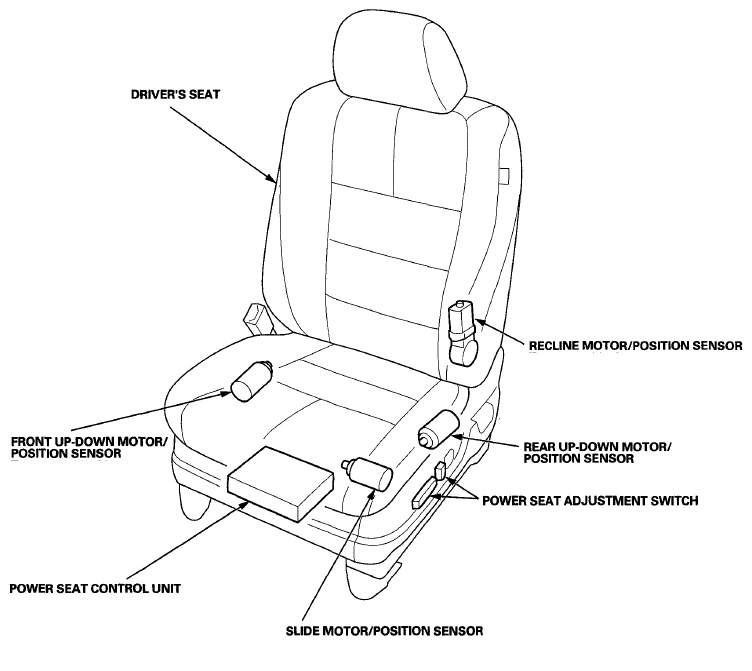

Fig 3: Identifying DPMS Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
