Crosstour EX, 3.5L Eng
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Idle Control System (V6)
>>
Component Location Index
Component Location Index

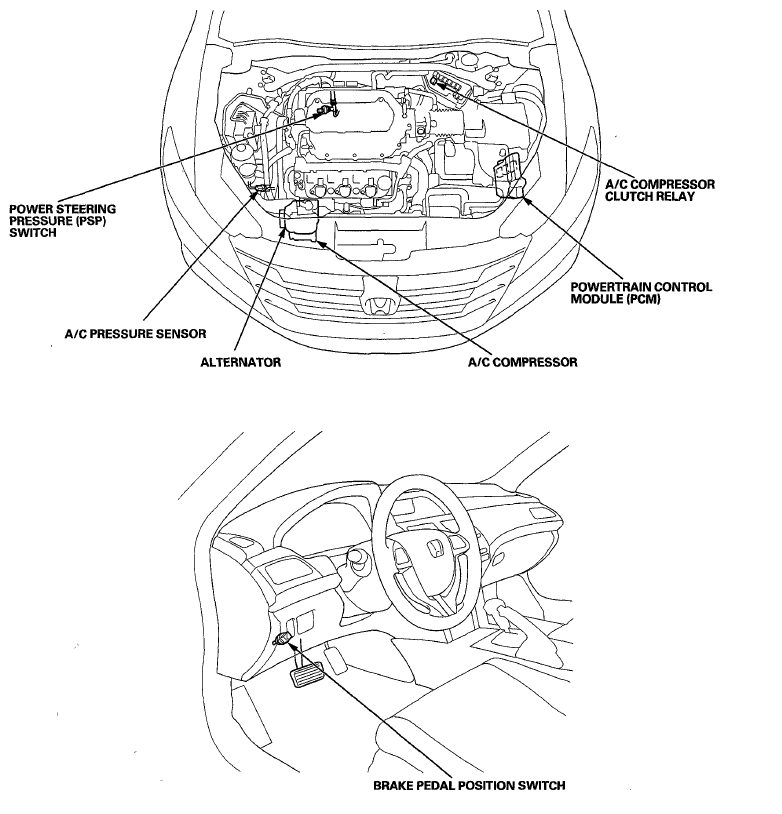

Fig 1: Identifying Idle Control System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
