Rear Power Window Motor Test

Remove the rear power window switch (see REAR POWER WINDOW SWITCH TEST/REPLACEMENT ).
Test the motor in each direction by connecting battery power and ground to the rear power window switch 14P connector (A) according to the table.

Fig 1: Rear Power Window Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

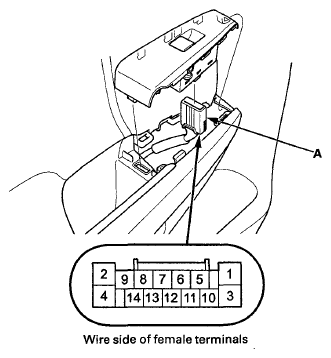

Fig 2: Identifying Rear Power Window Switch 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4.
Remove the door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the rear power window motor (B).

Fig 3: Identifying 2P Connector And Rear Power Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check for continuity between the rear power window switch 14P connector terminals and rear power window motor 2P connector terminals as shown. There should be continuity.

Rear power window switch 14P connector	Rear power window motor 2P connector
1 (RED)	1 (RED)
2 (BRN)	2 (BRN)

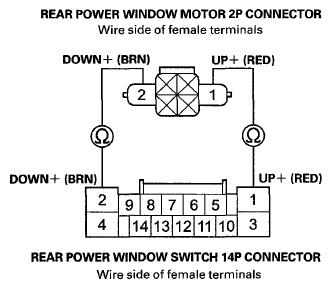

Fig 4: Checking Continuity Between Rear Power Window Switch 14P Connector Terminals And Rear Power Window Motor 2P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the wire harness is OK, the rear power window motor is faulty; replace the rear door regulator (see REAR DOOR GLASS AND REGULATOR REPLACEMENT ).
