Component Location Index

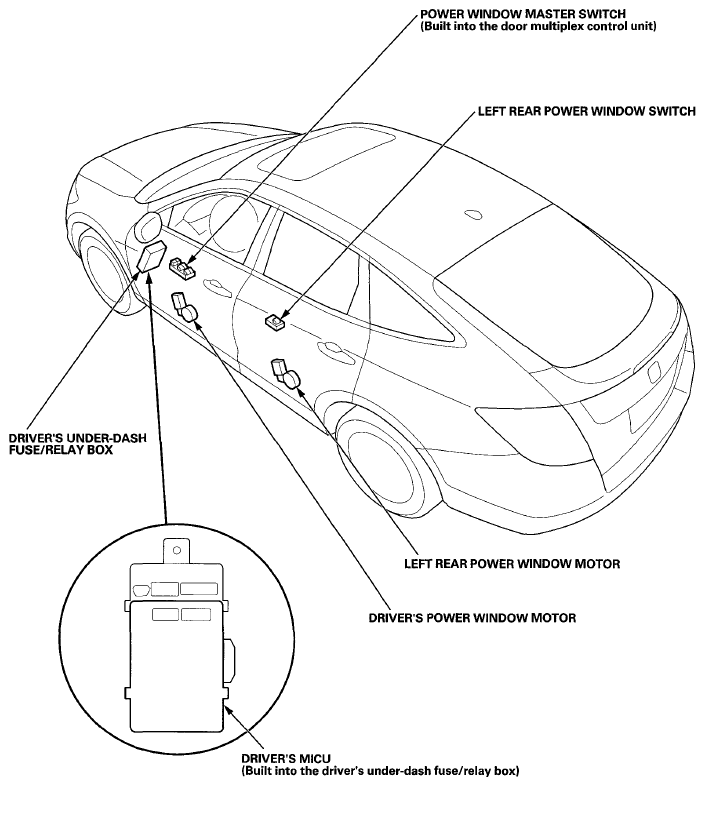

Fig 1: Power Window Components Location (1 Of 2)
G08083500Courtesy of AMERICAN HONDA MOTOR CO., INC.

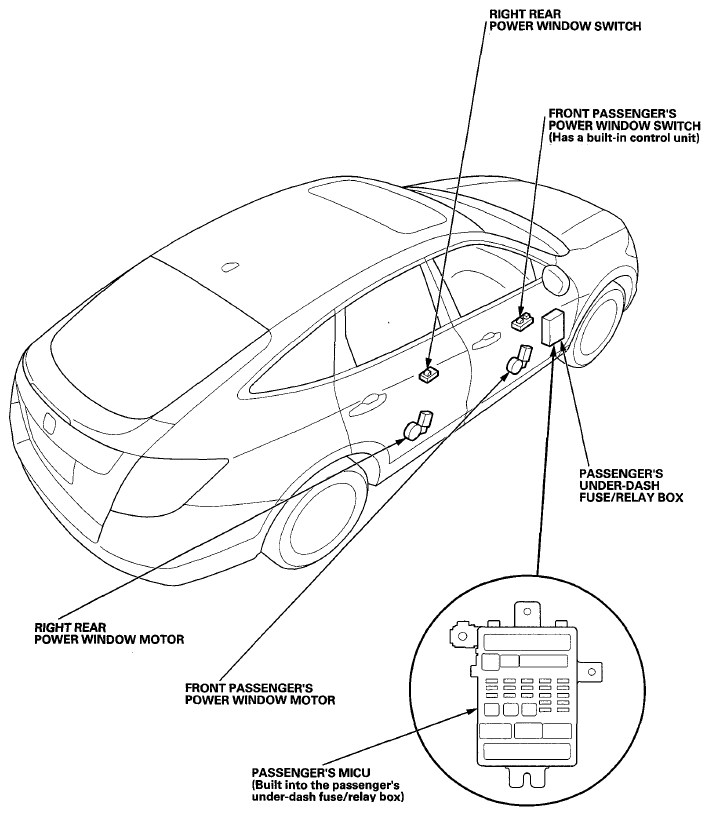

Fig 2: Power Window Components Location (2 Of 2)
G08083501Courtesy of AMERICAN HONDA MOTOR CO., INC.
