Electronic Control

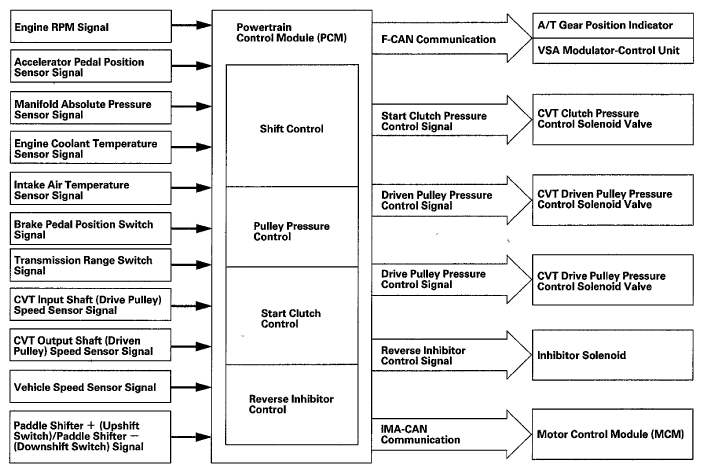

The electronic control system consists of the PCM, sensors, switches, and solenoid valves.
The PCM receives input signals from sensors, switches, other control units, processes data, and outputs signals for the engine control system and the CVT control system. The CVT control system includes shift control, pulley pressure control, start clutch pressure control, and reverse inhibitor control. The PCM actuates the pulley control solenoid valves to control pulley control valves A and B shifting transmission pulley ratios.
