EVAP Canister Purge Valve Replacement

  1. Disconnect the EVAP canister purge valve connector (A).

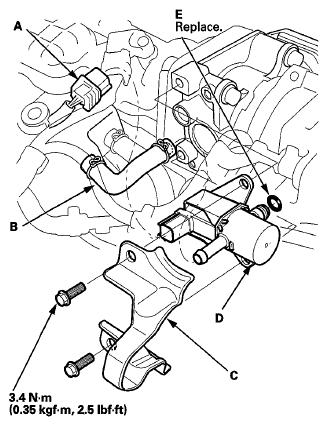

    Fig 1: EVAP Canister Purge Valve, Connector, Hose And Evap Canister Purge Guard With Torque Specifications
    G06950186Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the hose (B), then remove the EVAP canister purge guard (C), and the EVAP canister purge valve (D).
  3. Install the parts in the reverse order of removal with a new O-ring (E).
