Steering Rack Guide Adjustment: Removal

  1. Vehicle Lift
    1. Raise the vehicle on a lift, and make sure it is securely supported.
  2. Front Floor Undercover
    1. Remove the bolts (A) and the clips (B, C) securing the front floor undercover (D), then remove the front floor undercover.

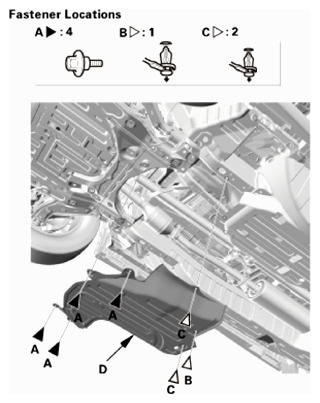

      Fig 1: Identifying Front Floor Undercover, Bolts And Clips
      G08890595Courtesy of AMERICAN HONDA MOTOR CO., INC.
