Steering Gearbox Disassembly and Reassembly: View

STEERING GEARBOX EXPLODED VIEW
NOTE: For these operations, refer to the complete procedure as needed.
- EPS motor removal and installation.
- Rack end removal and installation
- If the rack guide is removed, rack guide adjustment is necessary.

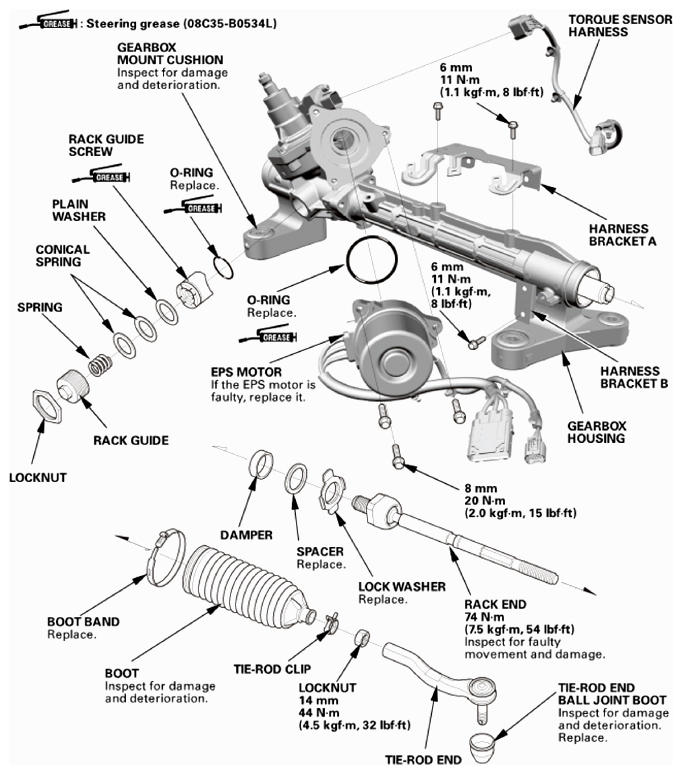

  Fig 1: Exploded View Of Steering Gearbox With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
