DTC P1732: Shift Error D: Notes

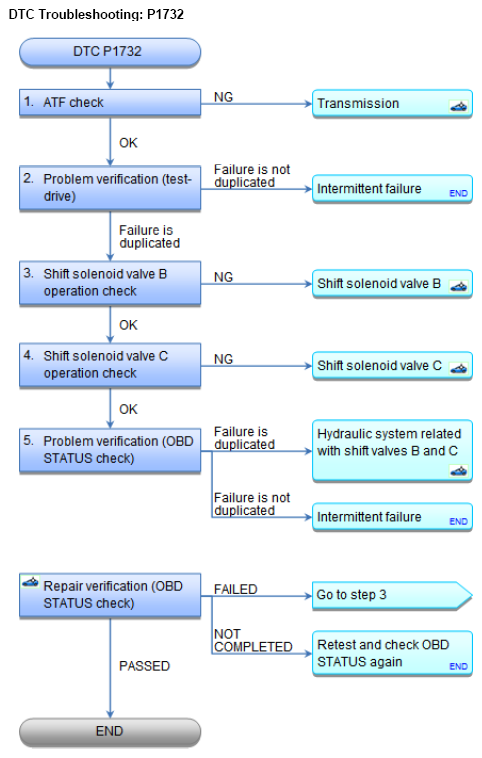

Fig 1: DTC Troubleshooting Flow Chart (P1732)
G08875472Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review the General Troubleshooting Information  See HOW TO TROUBLESHOOT THE A/T SYSTEM or HOW TO TROUBLESHOOT THE FUEL AND EMISSIONS SYSTEMS .
DTC Description Confirmed DTC Pending DTC Freeze Frame
P1732 Shift Error D
  1. ATF check:
    • 1. Warm up the engine to normal operating temperature (the radiator fan comes on).
    • 2. Make sure that the transmission is filled to the proper level, and check for fluid leaks.
    • 3. DRAIN THE ATF through a strainer. Inspect the strainer for metal debris or excessive clutch material.

    Does the strainer have metal debris or excessive clutch material?

    YES  : Replace the transmission  See AUTOMATIC TRANSMISSION DISASSEMBLY AND REASSEMBLY or AUTOMATIC TRANSMISSION REMOVAL AND INSTALLATION , then do the repair verification  .

    NO  : REPLACE THE ATF , then go to step 2.

  2. Problem verification (test-drive):
    • 1. Turn the ignition switch to ON (II).
    • 2. Clear the DTC with the HDS.
    • 3. Test-drive the vehicle with the shift lever in D, and let the transmission shift through all five gears.
    • 4. Monitor the OBD STATUS for P1732 in the DTCs MENU with the HDS.
      DTC Description OBD Status
      P1732 Shift Error D

    Does the HDS indicate FAILED?

    YES  : The failure is duplicated. Go to step 3.

    NO  : If the HDS indicates PASSED, intermittent failure, the system is OK at this time. If the HDS indicates NOT COMPLETED, test-drive again.

  3. Shift solenoid valve B operation check:
    • 1. Clear the DTC with the HDS.
    • 2. Select Shift Solenoid Valve B in the Miscellaneous Test Menu, and check that shift solenoid valve B operates with the HDS.

    Is a clicking sound heard?

    YES  : Shift solenoid valve B is OK. Go to step 4.

    NO  : REPLACE SHIFT SOLENOID VALVE B , then do the repair verification  .

  4. Shift solenoid valve C operation check:
    • 1. Select Shift Solenoid Valve C in the Miscellaneous Test Menu, and check that shift solenoid valve C operates with the HDS.

    Is a clicking sound heard?

    YES  : Shift solenoid valve C is OK. Go to step 5.

    NO  : REPLACE SHIFT SOLENOID VALVE C , then do the repair verification  .

  5. Problem verification (OBD STATUS check):
    • 1. Turn the ignition switch to ON (II).
    • 2. Clear the DTC with the HDS.
    • 3. Test-drive the vehicle with the shift lever in D, and let the transmission shift through all five gears.
    • 4. Monitor the OBD STATUS for P1732 in the DTCs MENU with the HDS.
      DTC Description OBD Status
      P1732 Shift Error D

    Does the HDS indicate FAILED?

    YES  : The failure is duplicated. Repair the hydraulic system related with shift valves B and C, or replace the transmission  See AUTOMATIC TRANSMISSION DISASSEMBLY AND REASSEMBLY or AUTOMATIC TRANSMISSION REMOVAL AND INSTALLATION , then do the repair verification  .

    NO  : If the HDS indicates PASSED, intermittent failure, the system is OK at this time. If the HDS indicates NOT COMPLETED, test-drive again.
