Relay Control Module Removal, Installation, and Test: Removal

  1. Relay Control Module
    1. Remove the cover (A).
    2. Remove the relay control module (B) from the under-hood fuse/relay box.
    3. Disconnect the relay control module connectors.

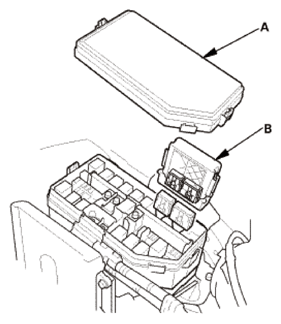

      Fig 1: Identifying Relay Control Module And Cover
      G08890180Courtesy of AMERICAN HONDA MOTOR CO., INC.
