VSA System Component Location Index

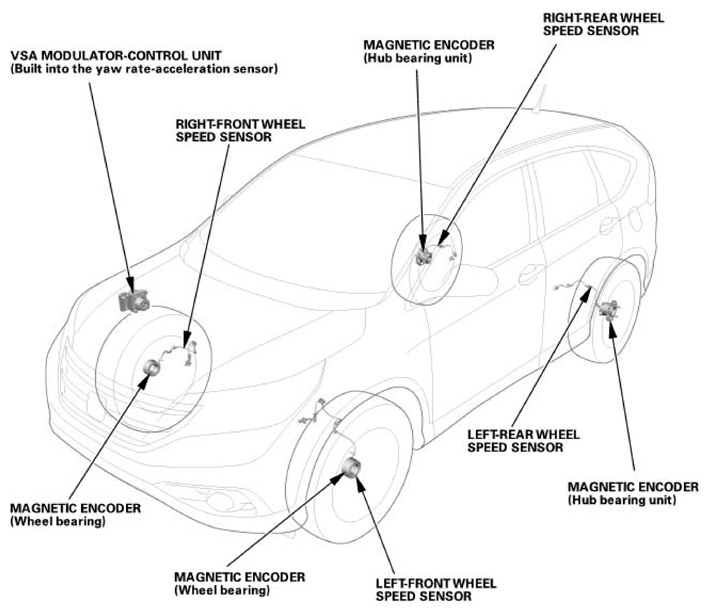

Fig 1: VSA System Components Location

G08883204

Courtesy of AMERICAN HONDA MOTOR CO., INC.

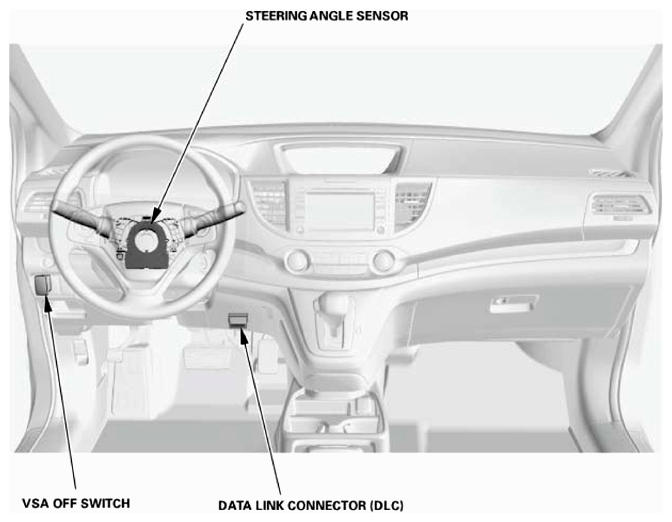

Fig 2: Identifying Steering Angle Sensor, VSA OFF Switch And DLC

G08883205

Courtesy of AMERICAN HONDA MOTOR CO., INC.

MAGNETIC ENCODER	FRONT WHEEL BEARING REPLACEMENT
MAGNETIC ENCODER	REAR HUB BEARING UNIT REPLACEMENT
STEERING ANGLE SENSOR	REMOVAL AND INSTALLATION
VSA MODULATOR-CONTROL UNIT	Removal and Installation See VSA SENSOR NEUTRAL POSITION MEMORIZATION , VSA MODULATOR-CONTROL UNIT UPDATE or VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION
	Update See VSA SENSOR NEUTRAL POSITION MEMORIZATION , VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION or VSA MODULATOR-CONTROL UNIT UPDATE
	VSA Sensor Neutral Position Memorization See VSA SENSOR NEUTRAL POSITION MEMORIZATION , VSA MODULATOR-CONTROL UNIT UPDATE or VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION
VSA OFF SWITCH	REMOVAL, INSTALLATION, AND TEST
WHEEL SPEED SENSOR	Front Wheel Speed Sensor Removal and Installation See FRONT WHEEL SPEED SENSOR REMOVAL AND INSTALLATION or REAR WHEEL SPEED SENSOR REMOVAL AND INSTALLATION
WHEEL SPEED SENSOR	Rear Wheel Speed Sensor Removal and Installation See FRONT WHEEL SPEED SENSOR REMOVAL AND INSTALLATION or REAR WHEEL SPEED SENSOR REMOVAL AND INSTALLATION
