VSA Modulator-Control Unit Removal and Installation: Installation

  1. VSA Modulator-Control Unit Bracket
    1. Install the VSA modulator-control unit (A) onto the bracket (B).

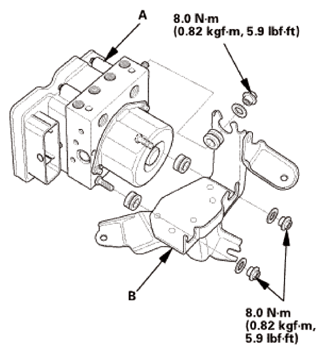

      Fig 1: VSA Modulator-Control Unit, Bracket And Bolts With Torque Specifications
      G08883180Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. VSA Modulator-Control Unit Assembly
    1. Install the VSA modulator-control unit (A) with the bracket (B) to the body.

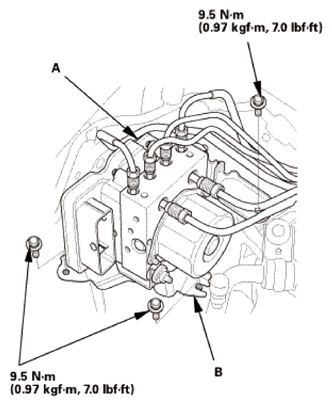

      Fig 2: VSA Modulator-Control Unit, Bracket And Bolts With Torque Specifications
      G08883181Courtesy of AMERICAN HONDA MOTOR CO., INC.
    2. Align the connecting surface of the connector (A).
    3. Pull down the lever (B) of the connector, then confirm the connector is fully seated.
      Fig 3: Pulling Down Connector Lever
      G08883182Courtesy of AMERICAN HONDA MOTOR CO., INC.
    4. Connect the 10 mm brake lines.
    5. Connect the 12 mm brake lines.
      NOTE: Brake lines are connected to the master cylinder (A), the left-rear (B), the right-front (C), the left-front (D), and the right-rear (E) brake systems.

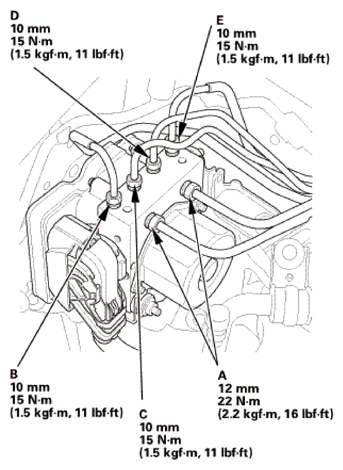

      Fig 4: Master Cylinder, Left-Rear, Right-Front, Left-Front And Right-Rear Brake Lines With Torque Specifications
      G08883183Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Vehicle Lift
    1. Raise the vehicle on a lift, and make sure it is securely supported.
  4. Brake System - Bleeding
    NOTE: Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid does contact the paint, wash it off immediately with water.
    Fig 5: Identifying MAX (Upper) Level Line On Reservoir Tank
    G08883184Courtesy of AMERICAN HONDA MOTOR CO., INC.
    NOTE:
    • Do not reuse the drained fluid. Use only new Honda DOT 3 Brake Fluid from an unopened container. Using a non-Honda brake fluid can cause corrosion and shorten the life of the system.
    • Make sure no dirt or other foreign matter gets in the brake fluid.
    • The reservoir connected to the master cylinder must be at the MAX (upper) level mark at the start of the bleeding procedure and checked after bleeding each wheel. Add fluid as required.
    • There are three different methods used for bleeding brake systems. The method shown here is the preferred manual method for removing the air from the system. For pressure or vacuum bleeding, refer to tool manufacturer's instructions included with the tool.
    1. Make sure the brake fluid level in the reservoir tank (A) is at the MAX (upper) level line (B).
      Fig 6: Identifying Bleeding Sequence Of Front Brake System Driver's Side Calipers
      G08883185Courtesy of AMERICAN HONDA MOTOR CO., INC.
    2. Start the bleeding at the driver's side of the front brake system.
      NOTE: Bleed the calipers in the sequence shown.
    3. Attach a length of clear drain tube (A) to the bleed screw (B).
    4. Submerge the other end of the drain tube into a clear plastic catch bottle of brake fluid (C).
    5. Have an assistant slowly pump the brake pedal several times then apply steady continuous pressure.
    6. Loosen the bleed screw slowly to bleed the fluid into the plastic catch bottle. The brake pedal will travel toward the floor as the fluid is bled from the system.

      Front

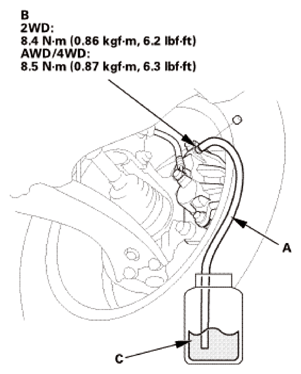

      Fig 7: Bleeding Brake Fluid Into Clear Plastic Catch Bottle Using Drain Tube (Front)
      G08883186Courtesy of AMERICAN HONDA MOTOR CO., INC.

      Rear

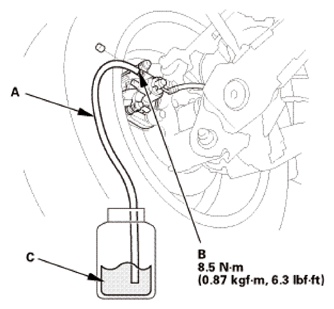

      Fig 8: Bleeding Brake Fluid Into Clear Plastic Catch Bottle Using Drain Tube (Rear)
      G08883187Courtesy of AMERICAN HONDA MOTOR CO., INC.
    7. When the brake pedal reaches the floor, have the assistant hold the pedal in that position, then tighten the bleed screw. The brake pedal can now be released.
    8. Check and refill the master cylinder reservoir tank to the MAX (upper) level line. Be sure to reinstall the master cylinder reservoir cap.
    9. Repeat steps  5 thru  8 until the brake fluid in the clear drain tube appears fresh and there are no air bubbles in the fluid.
    10. Repeat this procedure for each brake in the bleeding sequence.
  5. HDS DLC - Connection
    1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
    2. Turn the ignition switch to ON (II).
    3. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting.
      Fig 9: Identifying Data Link Connector
      G08883188Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. VSA Modulator-Control Unit - Update
    NOTE: Check any official Honda service website for more service information about updating the MVCI and control units.
  7. VSA Sensor Neutral Position - Memorization
    1. Park the vehicle on a flat and level surface, with the steering wheel in the straight ahead position.
    2. Select VSA ADJUSTMENT, then select ALL SENSORS with the HDS, and follow the screen prompts.
      NOTE: See the HDS Help menu for specific instructions.
  8. Steering Angle Sensor Neutral Position - Clear
    1. Select EPS ADJUSTMENT, then select EPS STEERING ANGLE SENSOR VALUE CLEAR and follow the screen prompts on the HDS.
      NOTE: See the HDS Help menu for specific instructions.
  9. Acceleration Neutral Position Sensor - Memorization (With Real Time AWD System)
    1. Select the ADJUSTMENT in the REAL TIME AWD SYSTEM with the HDS.
    2. Select the G SENSOR LEARNING in the ADJUSTMENT with the HDS.
      NOTE: See the HDS Help menu for specific instructions.
