Rear Power Window Switch Test: Installation

  1. Rear Door Power Window Switch Panel
    1. Connect the connector (A), then install the power window switch panel (B). Make sure the clips (C) and the hooks (D) snap into place securely.

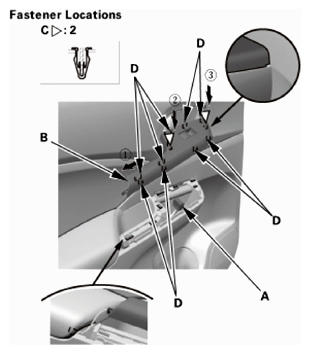

      Fig 1: Installing Power Window Switch Panel
      G08881683Courtesy of AMERICAN HONDA MOTOR CO., INC.
