Motor Test

Remove the rear power window switch See REAR POWER WINDOW SWITCH REMOVAL AND INSTALLATION or FRONT PASSENGER'S POWER WINDOW SWITCH REMOVAL AND INSTALLATION .
Test the motor in each direction by connecting battery power and ground to the rear power window switch 8P connector according to the table.

Fig 1: Rear Power Window Motor Switch Condition Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Rear Power Window Switch 8P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4 .
REMOVE THE DOOR PANEL .
Disconnect the 2P connector from the rear power window motor.

Check for continuity between the rear power window switch 8P connector terminals and rear power window motor 2P connector terminals as shown. There should be continuity.

Left side

Left rear power window switch 8P connector	Left rear power window motor 2P connector
1 (YEL)	1 (YEL)
3 (BRN)	2 (BRN)

Fig 3: Checking Continuity Between Rear Power Window Switch 8P Connector And Rear Power Window Motor 2P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right side

Right rear power window switch 8P connector	Right rear power window motor 2P connector
1 (WHT)	1 (WHT)
3 (BLU)	2 (BLU)

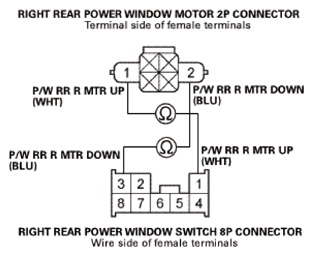

Fig 4: Checking Continuity Between Rear Power Window Switch 8P Connector And Rear Power Window Motor 2P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If there is no continuity, repair an open or high resistance in the wire(s). If the wire harness is OK, faulty rear power window motor; replace the rear door regulator. See Rear Door Regulator Removal and Installation
