Motor Test

REMOVE THE POWER WINDOW MASTER SWITCH .
Test the motor in each direction by connecting battery power and ground to the power window master switch 26P connector according to the table.

Fig 1: Driver's Power Window Motor Switch Condition Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Power Window Master Switch 26P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4 .
REMOVE THE DOOR PANEL .
Disconnect the 6P connector from the driver's power window motor.

Check for continuity between the power window master switch 26P connector terminals and driver's power window motor 6P connector terminals as shown. There should be continuity.

Power window master switch 26P connector	Driver's power window motor 6P connector
14 (GRY)	1 (GRY)
19 (PNK)	2 (PNK)

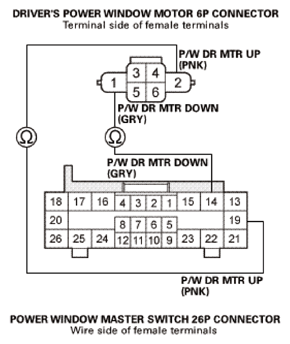

Fig 3: Checking Continuity Between Power Window Master Switch 26P Connector And Driver's Power Window Motor 6P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If there is no continuity, repair an open or high resistance in the wire(s). If the wire harness is OK, REPLACE THE DRIVER'S DOOR POWER WINDOW MOTOR .
Hall IC Unit (Pulser) Test
Do the power window master switch input test for terminals No. 9, No. 10, No. 11, and No. 12.
