Key Interlock Solenoid Test: Test

  1. Key Interlock Solenoid - Test
    1. Disconnect the connector.
    2. Turn the ignition key to ACCESSORY (I).
    3. Connect power to steering lock connector terminal No. 1, and ground steering lock connector terminal No. 4. Check that the ignition key cannot be turned to LOCK (0). Disconnect power and check that the key can be turned to the LOCK (0) position and removed from the cylinder.
    4. If the key interlock solenoid works improperly, the key interlock solenoid is faulty; replace the steering lock.
    5. Connect the connector.

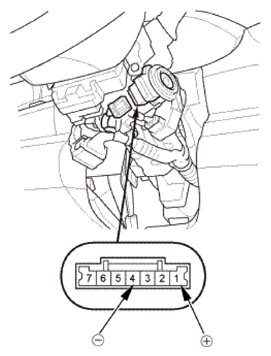

      Fig 1: Identifying Key Interlock Solenoid Connector
      G08881396Courtesy of AMERICAN HONDA MOTOR CO., INC.
