Ignition Key Switch Test: Removal

SRS components are located in this area. Review the SRS COMPONENT LOCATIONS and the PRECAUTIONS AND PROCEDURES before doing repairs or service.

1. Upper Column Cover

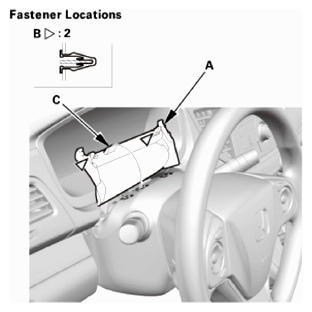

   1. Carefully pry out the dashboard meter visor blind cover (A) with the appropriate trim tool to detach the clips (B) and the hook (C), then tuck up the dashboard meter visor blind cover.
      Fig 1: Removing Dashboard Meter Visor Blind Cover

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
   2. Detach the hooks (A), then remove the upper column cover (B).
      Fig 2: Identifying Upper Column Cover And Hooks

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Lower Column Cover

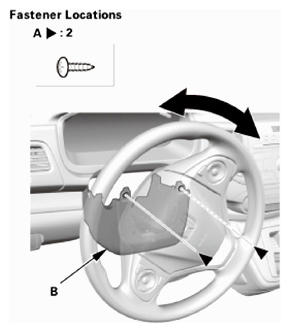

   1. Turn the steering wheel to the left. Remove the screw (A) securing the lower column cover (B) from the front side.
   2. Turn the steering wheel to the right. Remove the screw securing the lower column cover from the front side.
      Fig 3: Turning Steering Wheel

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

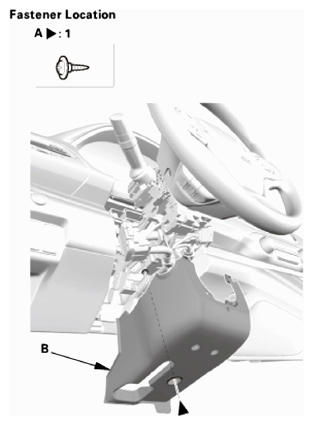

   3. Remove the screw (A), then remove the lower column cover (B).
      Fig 4: Identifying Lower Column Cover And Screw

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
