Ignition Key Light Test: Installation

SRS components are located in this area. Review the SRS COMPONENT LOCATIONS and the PRECAUTIONS AND PROCEDURES before doing repairs or service.

1. Lower Column Cover
   1. Push in on the lower column cover just above ignition switch opening (A) to engage the column cover with the locking tab (B).
      Fig 1: Engaging Column Cover And Locking Tab

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

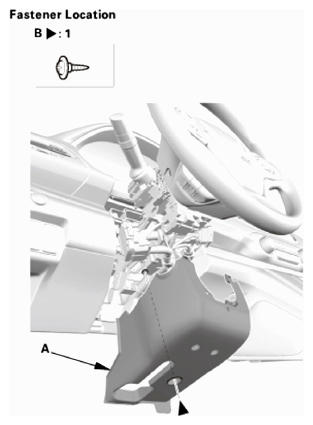

   2. Install the lower column cover (A), then install the screw (B).
      Fig 2: Identifying Lower Column Cover And Screw

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

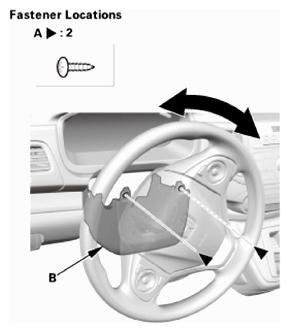

   3. Turn the steering wheel to the left. Install the screw (A) securing the lower column cover (B) from the front side.
   4. Turn the steering wheel to the right. Install the screw securing the lower column cover from the front side.
      Fig 3: Turning Steering Wheel

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Upper Column Cover
   1. Install the upper column cover (A). Make sure the hooks (B) snap into place securely.
      Fig 4: Identifying Upper Column Cover And Hooks

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

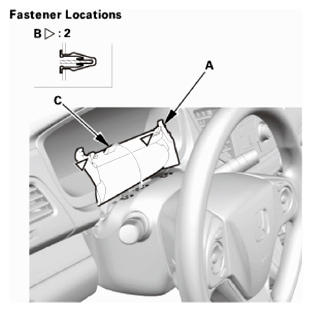

   2. Install the dashboard meter visor blind cover (A). Make sure the clips (B) and the hook (C) snap into place securely
      Fig 5: Installing Dashboard Meter Visor Blind Cover

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
