Section 95 (Security System Keyless Entry System - Testing & Troubleshooting (1 Of 2) (Except Hybrid))
>>
Component Location Index
>>

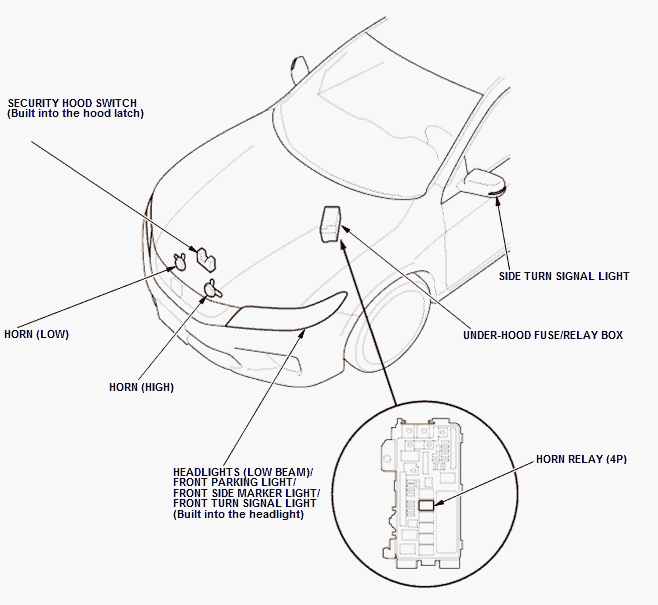

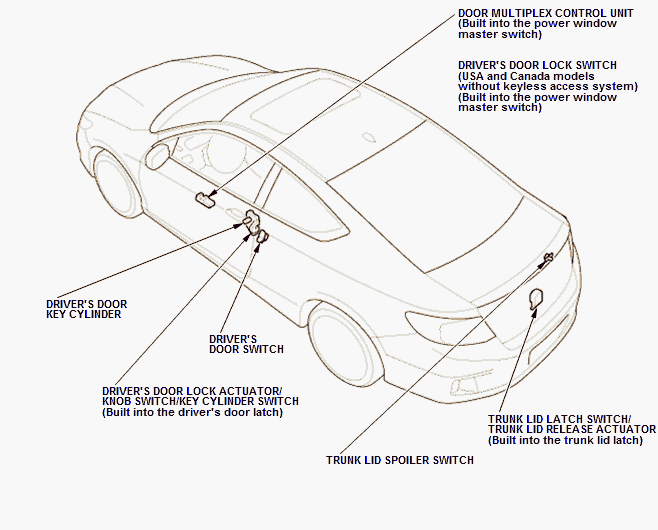

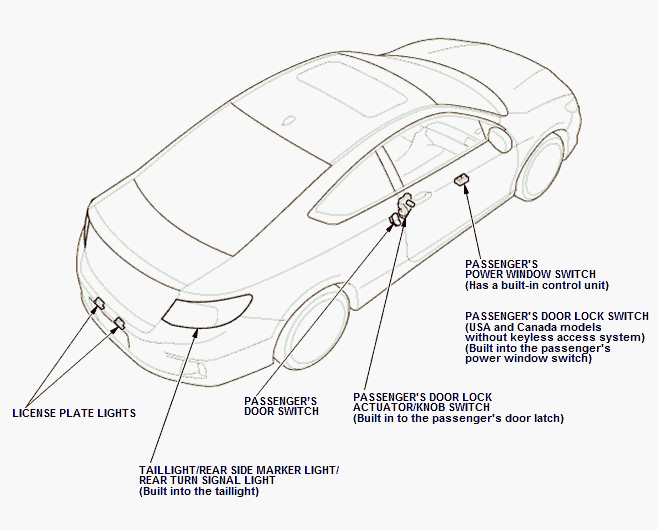

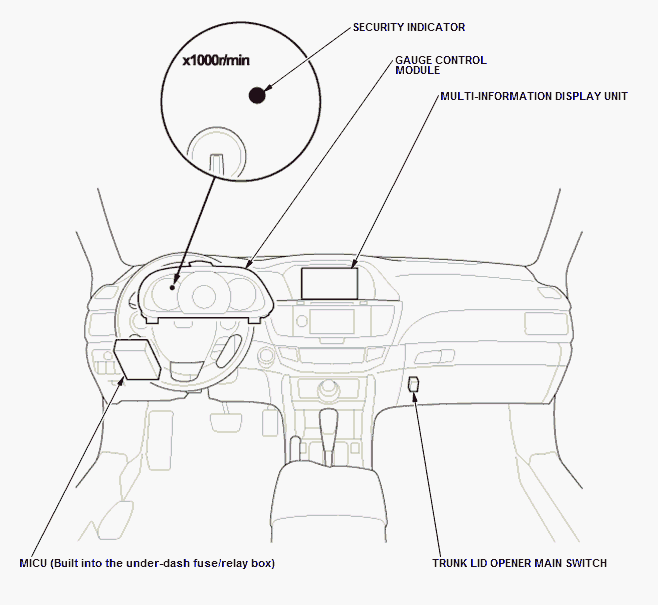

Keyless/Power Door Locks/Security System Component Location Index (2-Door) Without Keyless Access System
Keyless/Power Door Locks/Security System Component Location Index (2-Door) Without Keyless Access System
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
