Keyless/Power Door Locks/Security System Component Location Index (2-Door) With Keyless Access System

WARNING: This page is about a different variant/trim than selected.

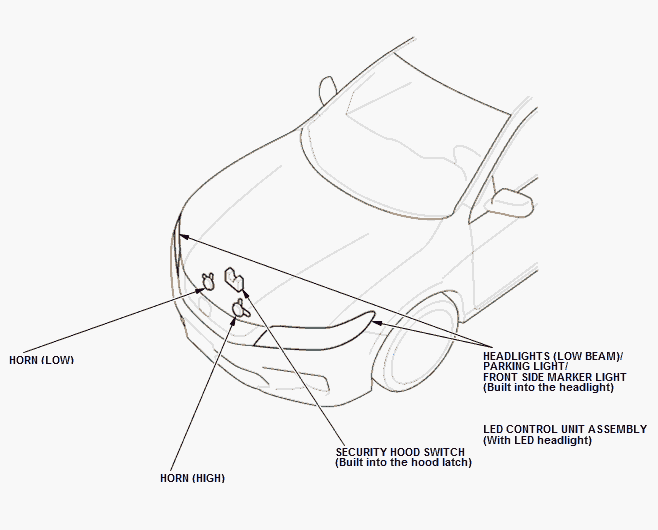

GHH64976Courtesy of HONDA, U.S.A., INC.

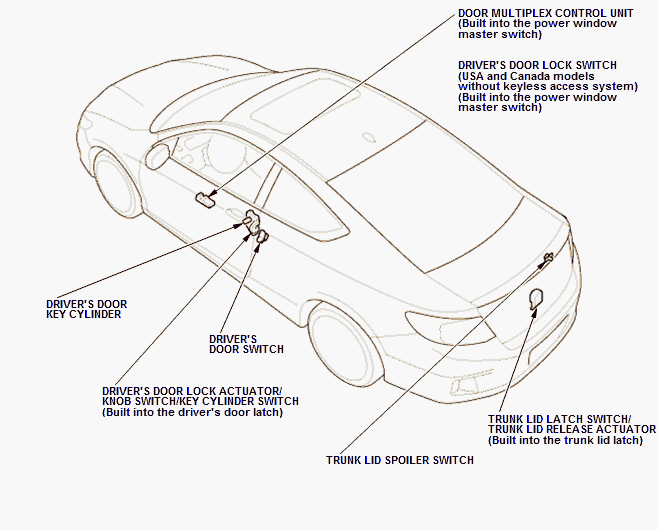

GHH64977Courtesy of HONDA, U.S.A., INC.

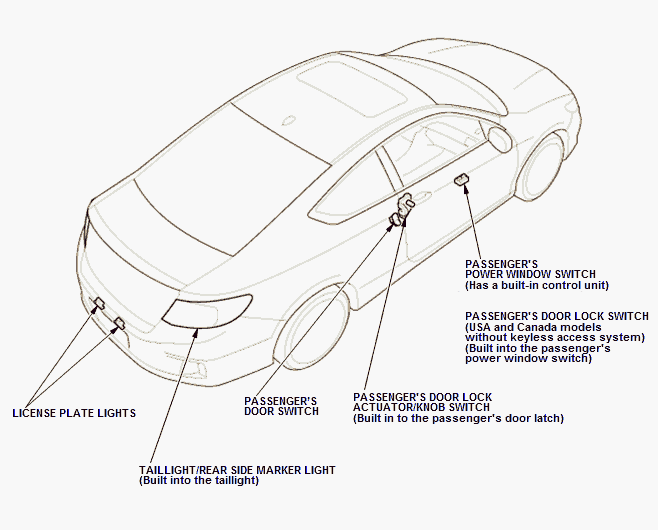

GHH64978Courtesy of HONDA, U.S.A., INC.

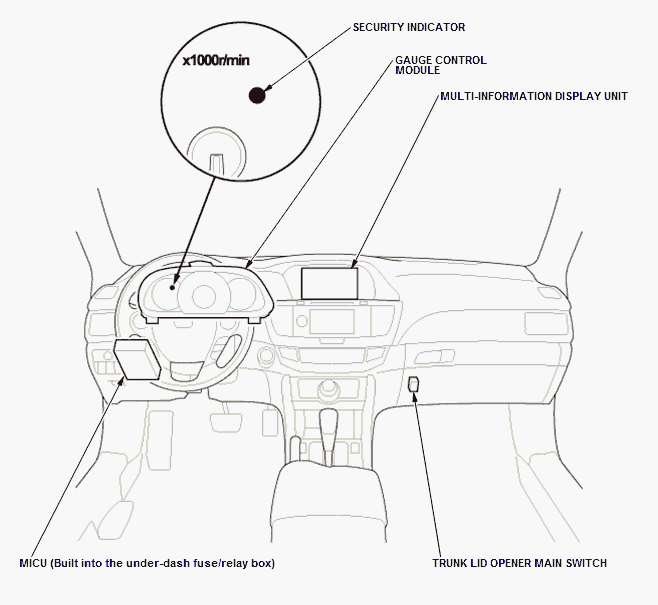

GHH64979Courtesy of HONDA, U.S.A., INC.
