Keyless Access System Component Location Index: Notes
WARNING: This page is about a different variant/trim than selected.

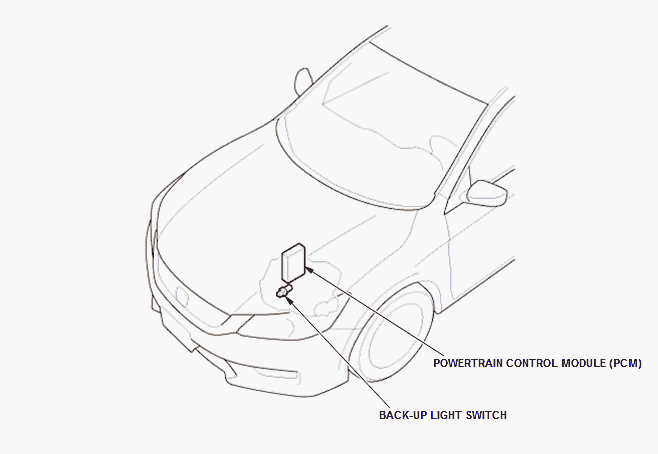

K24W1 Engine (M/T)
 Courtesy of HONDA, U.S.A., INC.
|

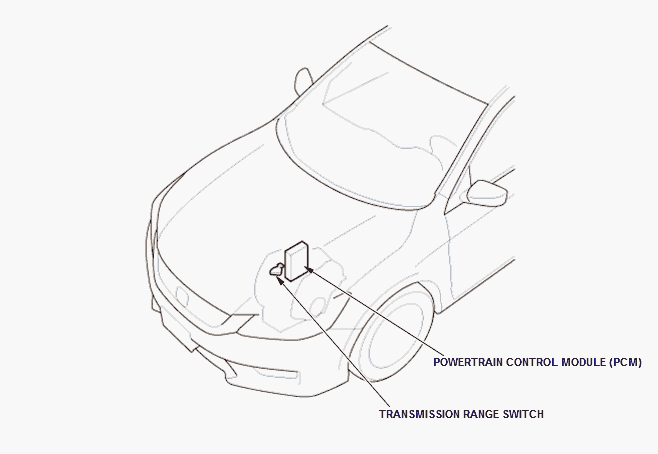

K24W1 Engine (CVT)
 Courtesy of HONDA, U.S.A., INC.
|

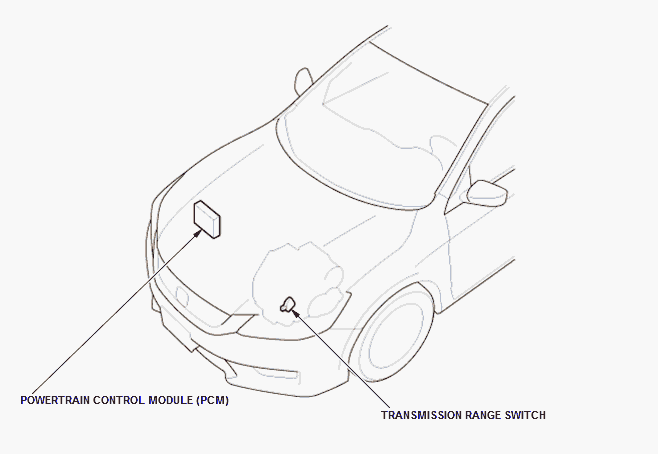

J35Y1 Engine
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

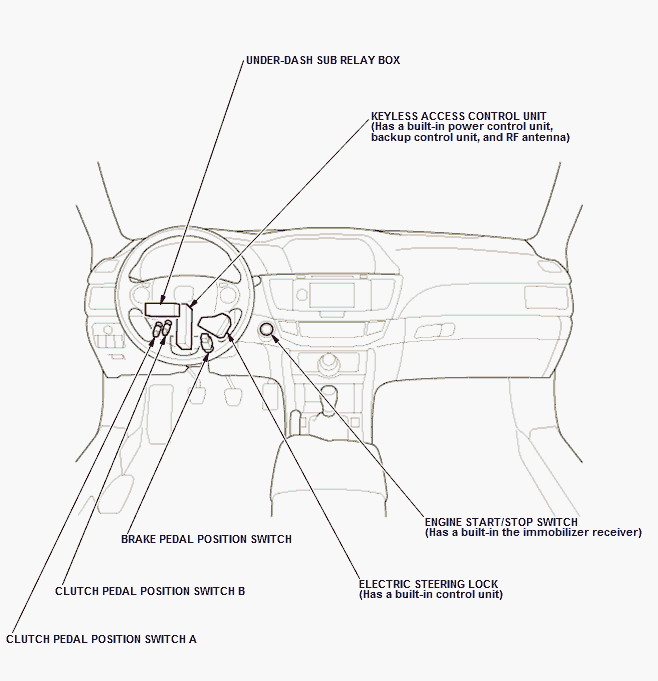

M/T
 Courtesy of HONDA, U.S.A., INC.
|

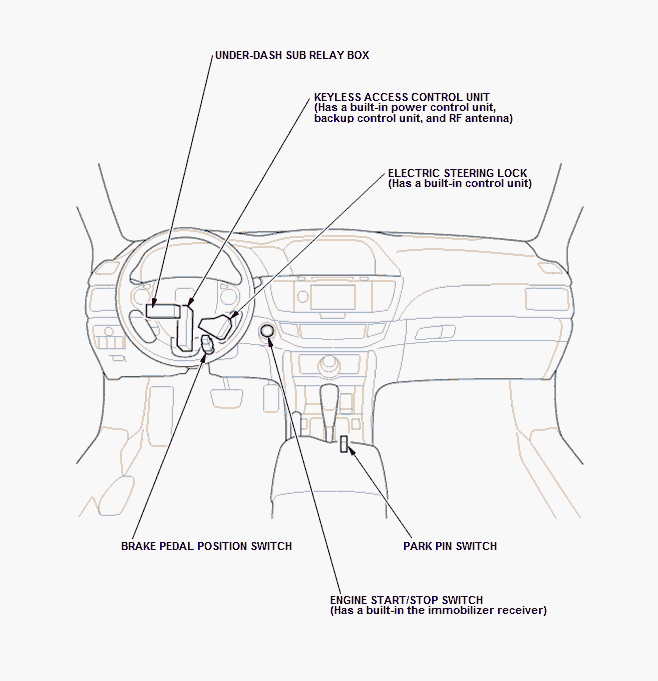

A/T and CVT
 Courtesy of HONDA, U.S.A., INC.
|
