Exterior Components

WARNING: This page is about a different variant/trim than selected.

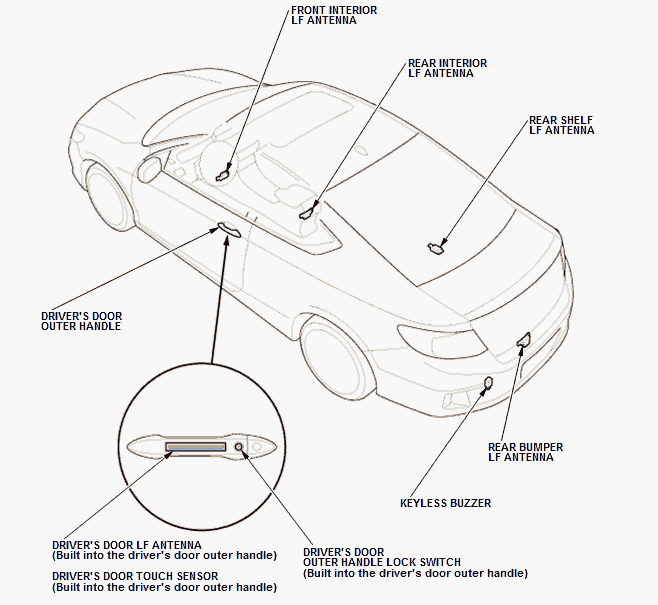

GHH64920Courtesy of HONDA, U.S.A., INC.

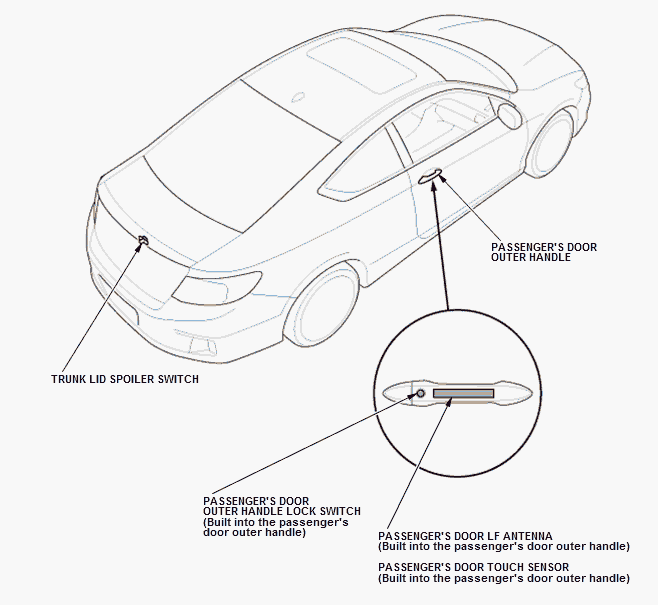

GHH64921Courtesy of HONDA, U.S.A., INC.

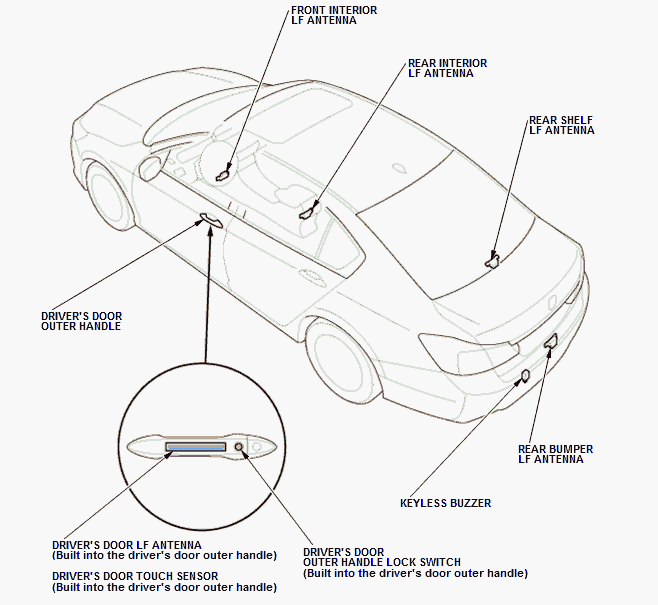

GHH64939Courtesy of HONDA, U.S.A., INC.

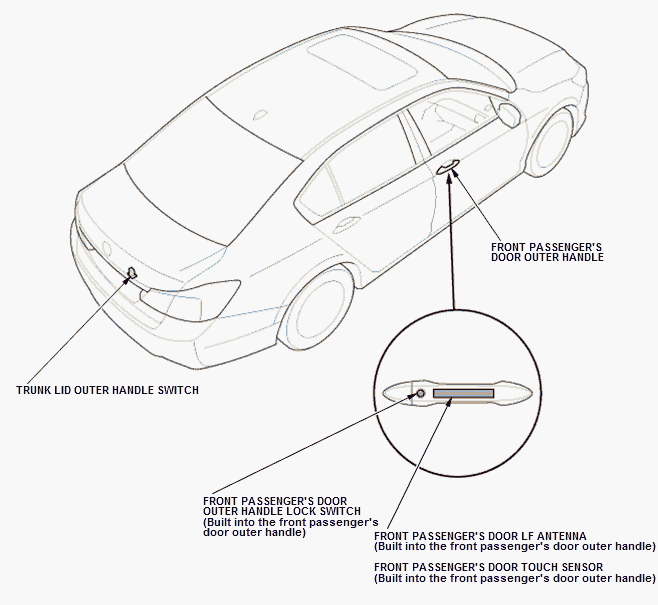

GHH64940Courtesy of HONDA, U.S.A., INC.
