Immobilizer System Component Location Index (2-door)

WARNING: This page is about a different variant/trim than selected.

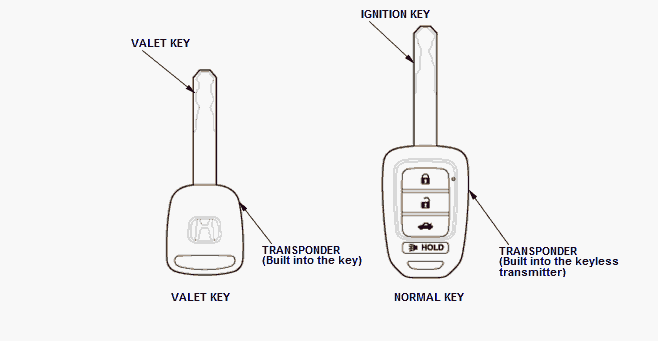

GHH64899Courtesy of HONDA, U.S.A., INC.

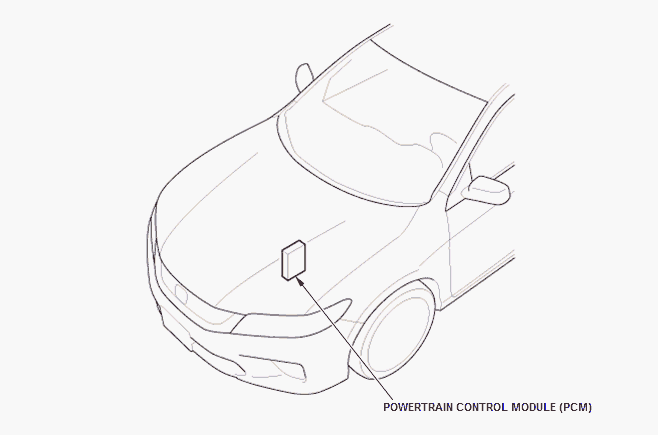

GHH64900Courtesy of HONDA, U.S.A., INC.

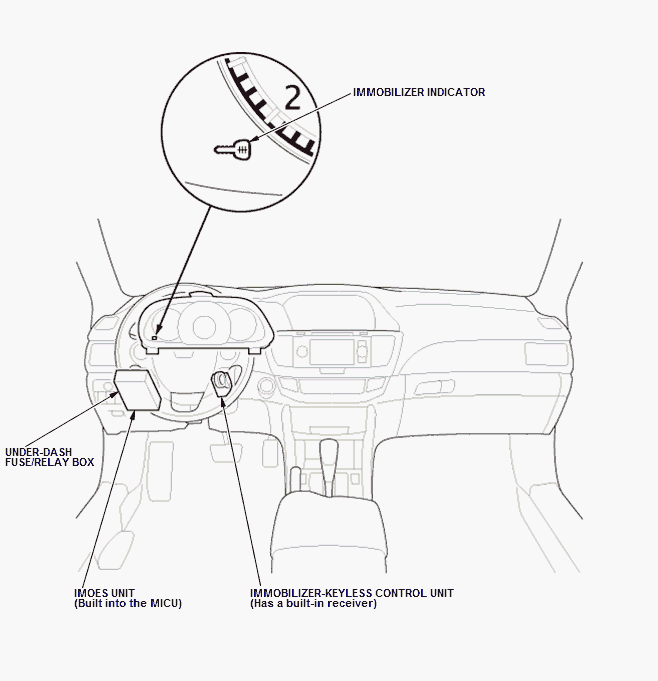

GHH64901Courtesy of HONDA, U.S.A., INC.
