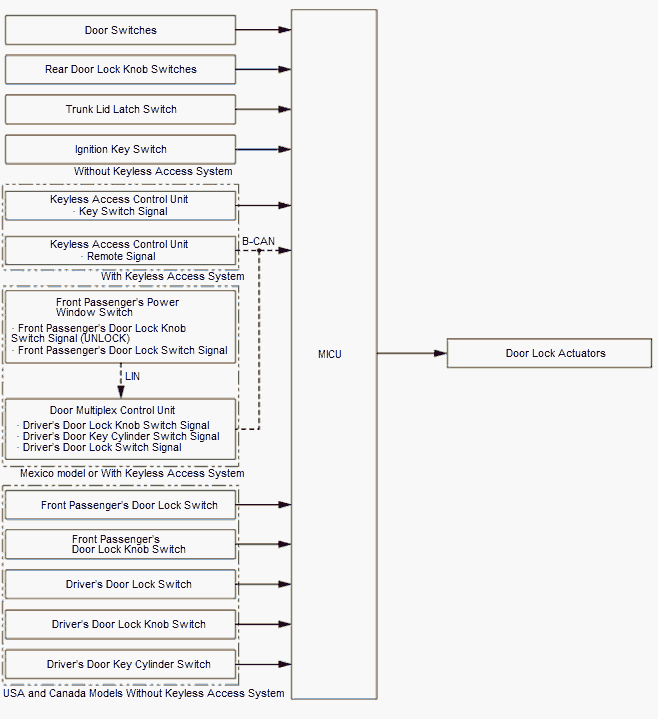

Door Lock Control

The door lock control function allows the MICU to detect the status of various switch signals and control each actuator in order to lock and unlock doors.

Courtesy of HONDA, U.S.A., INC.

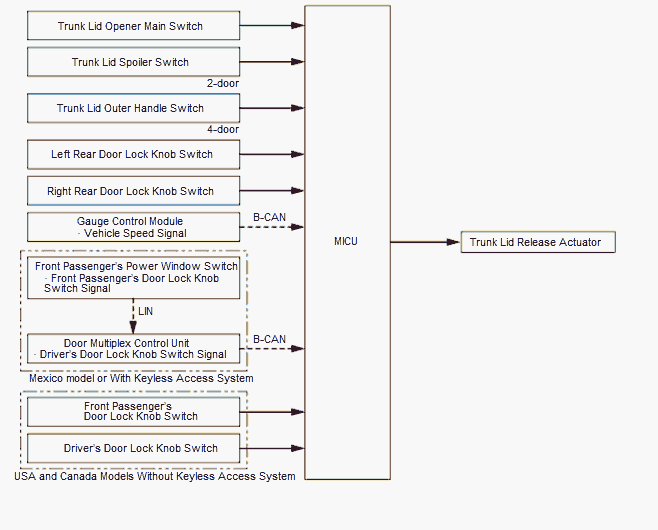

Trunk Lid Control

The trunk lid control function allows the MICU to detect the status of various switch signals and control trunk lid release actuator in order to unlock trunk.

Courtesy of HONDA, U.S.A., INC.

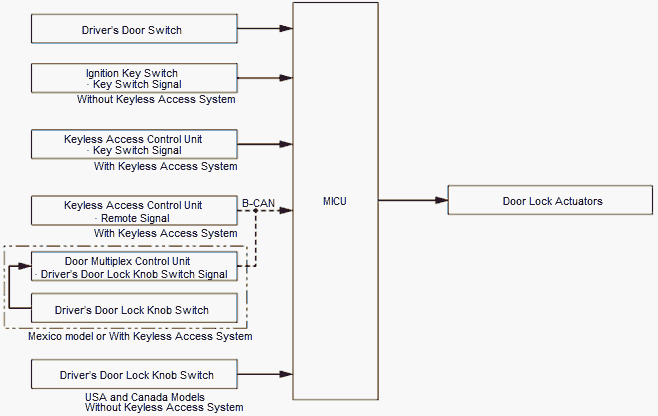

Keyless Door Lock Control

The remote can transmit a lock or unlock signal to the keyless access control unit, which sends the keyless request to the MICU using the B-CAN, then the MICU controls the door lock actuator (s) by the B-CAN signal and various switch signal.

Courtesy of HONDA, U.S.A., INC.

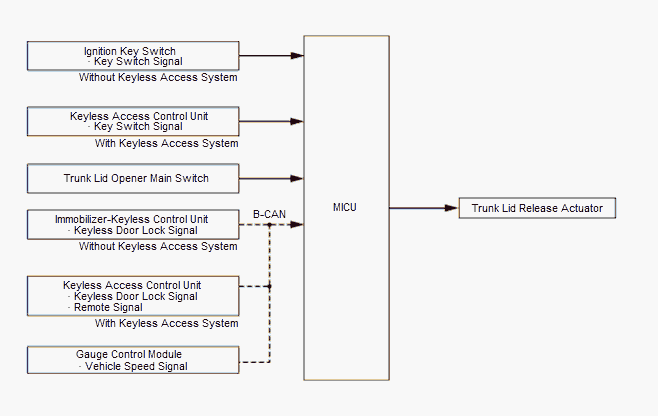

Keyless Door Lock Control (Trunk Lid)

The remote can transmit a lock or unlock signal to the keyless access control unit, which sends the keyless request to the MICU using the B-CAN, then the MICU controls the trunk lid release actuator by the B-CAN signal and various switch signal.

Courtesy of HONDA, U.S.A., INC.

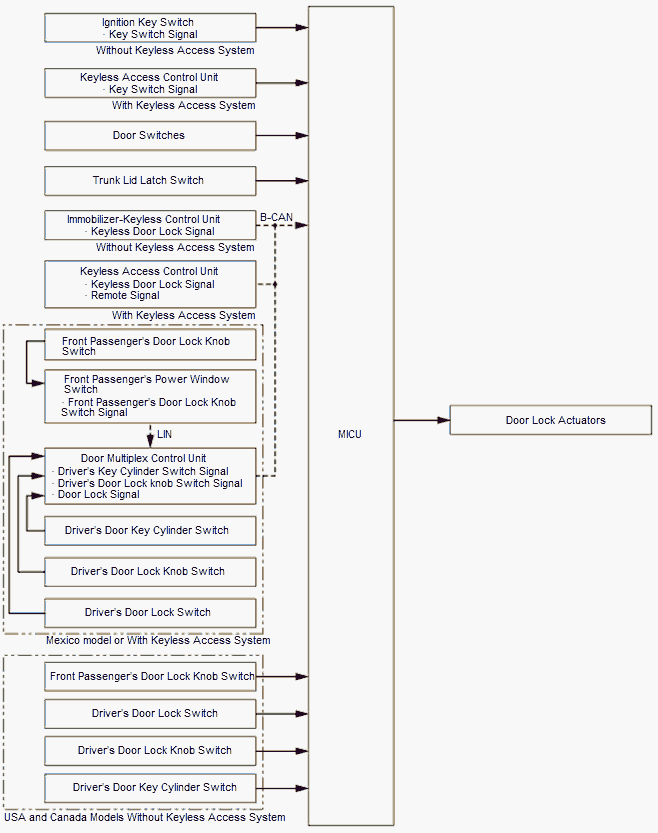

Key Lockout Prevent Function

The lockout function observes the key switch signal input. If the input is "ON" (key insert to the ignition switch or key present in the vehicle), the system will not lock the doors. If the driver manually locks and closes the doors with a key in the ignition switch or remote in the vehicle (input ON), the MICU energizes the driver's door lock actuator and unlocks the driver's door.

Courtesy of HONDA, U.S.A., INC.

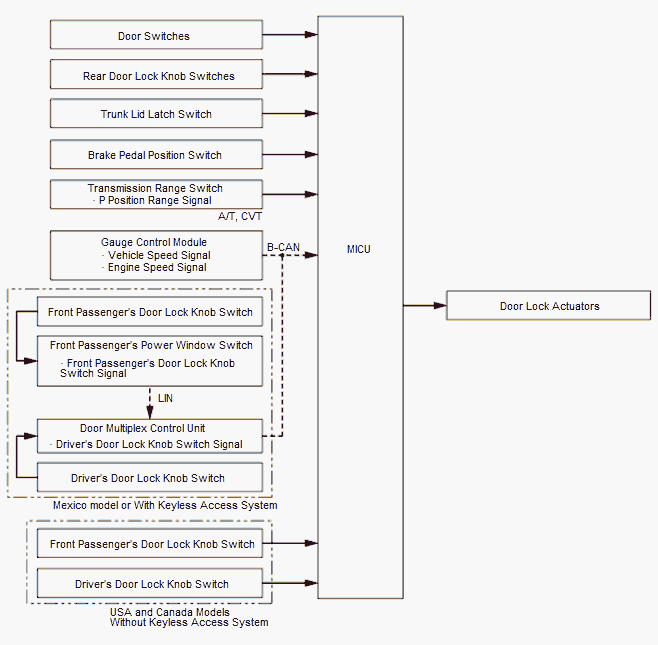

Automatic Door Lock/Unlock Control

The automatic door lock/unlock control function allows the MICU to detect the status of B-CAN signals and various switch signals and controls each actuator in order to automatically lock/unlock the doors.

Automatic Door Lock Function:

When the vehicle speed exceeds 9 mph (15 km/h). (Default setting)
When the shift position/mode is out of the P position/mode.

Automatic Door Unlock Function:

When the driver's door is open. (Door switch ON) (Default setting)
When the shift position is moved to the P position from other than P position.
When the vehicle mode is changed to the OFF (LOCK) mode from the ON mode.

Customizing Function:

The locking method can be set to non-linked, link to vehicle speed, link to shift position, or link to ignition switch or engine start/stop switch by the customizing function. For more information about customize options, refer to the Owner's manual.

Courtesy of HONDA, U.S.A., INC.

Security Function

Security Control

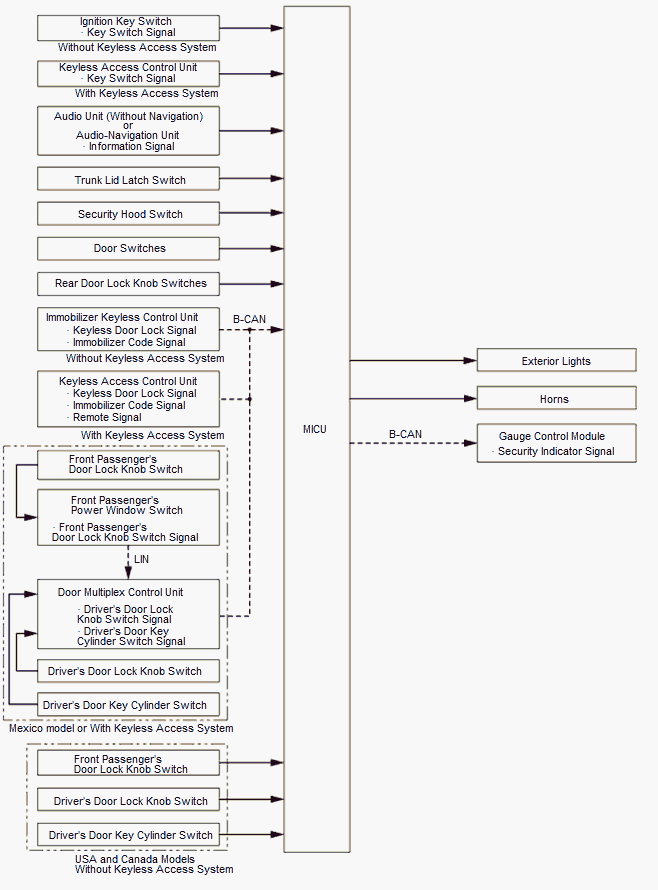

When the security alarm is set, the MICU sends the security set signal using the B-CAN.

Courtesy of HONDA, U.S.A., INC.

Security System Operating Term

Start setting	Lock the door using a mechanical key Lock the door by the remote or the keyless transmitter Lock the door by press the door outer handle lock switch while having the remote Operate a keyless relock
Cancellation	Unlock the door using a mechanical key Unlock the door by the remote or the keyless transmitter Unlock the door by smart function Press the engine start/stop switch bring the remote
Setting Conditions (related systems are normally operated)	Door switch OFF (Close) Door unlock knob switch OFF (LOCK) Trunk lid latch switch OFF (Close) Driver's door key cylinder switch OFF Security hood switch OFF (Close) Vehicle OFF (LOCK) mode Ignition key switch OFF (Key removed) (Without keyless access system) The remote is outside of the vehicle (With keyless access system)
Start the alarm	When any of the monitoring switch signals is input without receiving the signal for cancelling setting
Cancel the alarm	Compliant with the conditions for cancelling setting

Security Setting

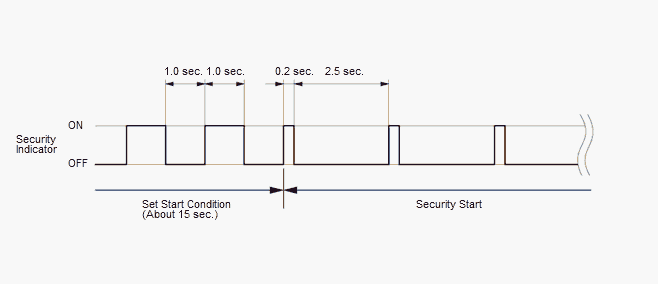

When the security alarm is set, MICU sends the security set signal using the B-CAN. When the gauge control module receives the security set signal from MICU, the security indicator flashes to indicate the system is arming.

Courtesy of HONDA, U.S.A., INC.

Security Alarm

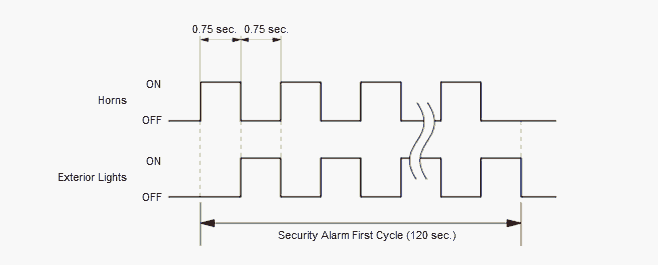

With the security system armed, manually opening the hood or trunk or moving an interior lock knob to the unlock position activates the security alarm. Alternatively, the security alarm sounds and the headlights low beam, the parking lights, the taillights, the license plate lights, and the side marker lights blink, repeating this alarm (one cycle is 120 seconds) 10 times maximum. Even if you disconnect the battery, the alarming state cannot be cancelled. The alarm starts again when reconnecting the battery.

Courtesy of HONDA, U.S.A., INC.

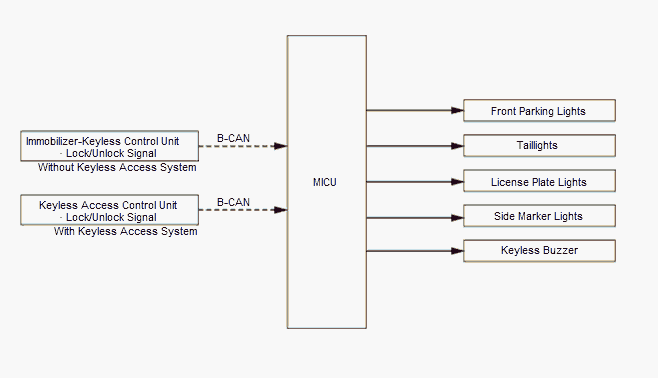

Answer Back Control

When using the keyless transmitter or the remote, the MICU has an answer back function to notify the operator it receives a lock or an unlock command from the keyless transmitter or the remote.

Courtesy of HONDA, U.S.A., INC.

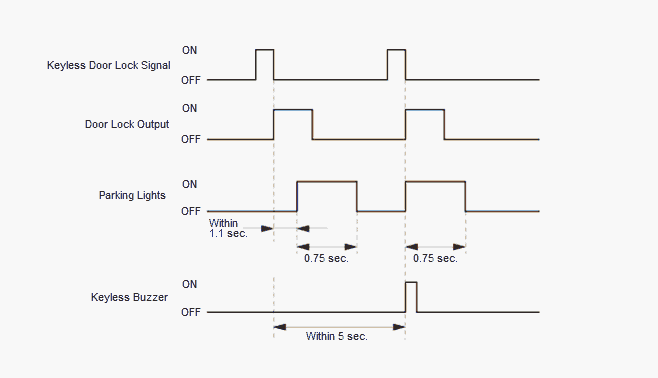

Security System Armed

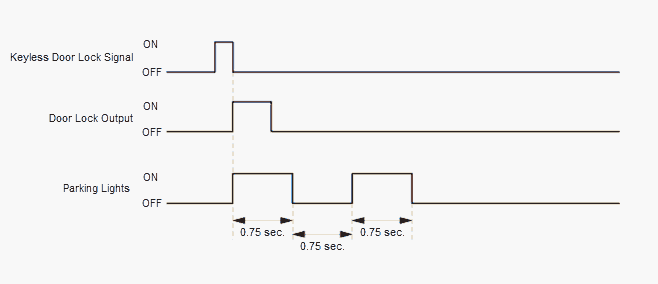

When the MICU receives a lock signal, it sends signals once to the parking lights, the taillights, the license plate lights, the side marker lights, and the keyless buzzer will sound once when pressed the LOCK button again within 5 seconds.

Courtesy of HONDA, U.S.A., INC.

Security System Disarmed

When the MICU receives an unlock signal, it sends signals two times to the parking lights, the taillights, the license plate lights, and the side marker lights.

Courtesy of HONDA, U.S.A., INC.
